Permanent Magnet Linear Stepper Motor 36mm 2 Phase Custom Through Shaft - China
price: 7.00 Dollar US$
Product Details:
Place of Origin: China
Brand Name: Vic-Tech
Certification: ROHS
Model Number: VSM36-24s-0508-002
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 7~40usd
Packaging Details: EPE inner packaging, paper carton outer packaging, .
For bulk products can be palletized for easy delivery and proper protection of products
Delivery Time: 15days
Payment Terms: L/C, T/T
Supply Ability: 100000 pcs per month Detailed Product Description
Type: Micro Linear Stepper Motor Phase: 2 Phase
Step Angle(degrees): 15 Degree Voltage: 5 V
Frame Size: Dia 36mm Thrust(N): 60-80 N
Stroke: 85mm Motor Structure: Through Going Shaft
High Light: Permanent Magnet Linear Stepper Motor, Linear Stepper Motor 36mm, 2 Phase Custom Stepper Motor

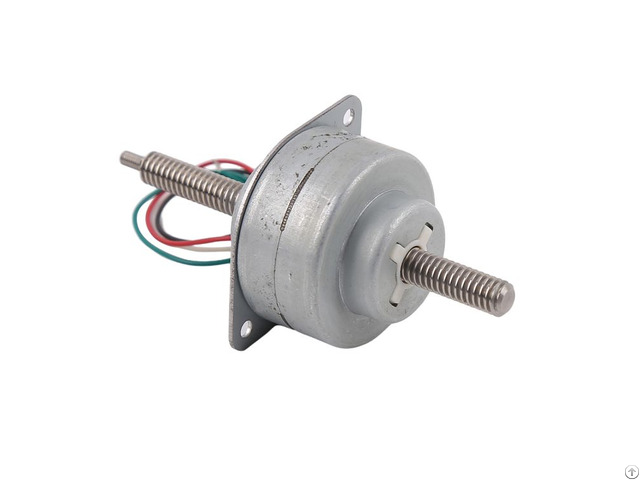

36mm linear stepper with 4 lead wires: This type of motor is a through-shaft 36mm permanent magnet step linear motor.
In addition to the 36mm permanent magnet linear motor, there are 20mm and 25mm permanent magnet linear motors.
It has the common parameter characteristics of stepper motors.
For example: basic size, step angle, number of phases, resistance, maximum self-start frequency and other indicators.
In terms of internal structure, the center of the rotor is made of an integrated nut, and the motor shaft is made of a lead screw.
When the motor rotates, the output shaft will follow the rotation, and the rotation direction will move back and forth, so it is called a linear motor.
In addition to through-shaft linear motors, we also have fixed-shaft and external drive linear motors for customers to choose from.
Of course, if customers have any questions during the selection process, they can get in touch with our service staff, and we will do our best to assist customers.
36mm linear stepper motor parameter sheet: PRODUCT NAME 36mm linear stepper motor
MODEL VSM36L-24S-0508-002
VOLTAGE 5 V
POWER 5.6W
PHASE CURRENT 560mA
PHASE RESISTCE 9(±10%) Ohm
PHASE INDUCTANCE 8(±20%) mH/1KHz
STER ANGLE 15°
SCREW LEAD 1.2192mm
STEP TRAVEL 0.0508mm
LINEAR TRAVEL 60-80 N/300PPS
INSULATION CLASS CLASS E FOR COILS
INSULATION STRENGTH 3.0mA (max.
)
INSULATION RESISTENCE 1 MΩ (DC 100 V)
OPERATING TEMPERATURE RANGE -20~+55 ℃
STORANG TEMP RANGE -40~+100 ℃
OEM & ODM SERVICE AVAILABLE
Company Contact:
- Phone: +8617715451401
- Address: No.28,Shunyuan Road,Xinbei Dist, Changzhou,Jiangsu,China(M ainland), In business, China
- Email:
Published date: February 20, 2023
- Business Description: Changzhou Vic-Tech Motor Technology Co., Ltd. is a professional scientific research and production institution focusing on motor research and development, overall solution solutions for motor applications, and motor product processing and production.
Changzhou Vic-Tech Motor Technology Co., Ltd. has been specializing in the production of micro motors and accessories since 2011 - Our main products: micro stepper motors, gear motors, underwater thrusters and motor drivers and controllers.
