Micro Pm Stepper Motor 5 Volt Dia 4 4mm With Gearbox - China
price: 5.00 Dollar US$
Product Details:
Place of Origin: China
Brand Name: VIC-TECH
Certification: RoHS
Model Number: SM044PG
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: $5-$12/unit
Packaging Details: Selling Units: Single item plastic box inner, outer paper box Package: single carton packing, 100 - 1000 pieces per box.
Lead Time : 30 Days After Deposit
Delivery Time: 15-30 work days
Payment Terms: , T/T, Western Union, T/T
Supply Ability: 1000000units/year STEP ANGLE: 22.5° MOTOR TYPE: Stepper Motor With Gearbox
RESISTANCE: 14 Ω ± 8% PHASE CURRENT: 450mA Max
GEAR RATIO: 20.25: 1 VOLTAGE: 5V
HIGH LIGHT: Micro PM Stepper Motor, 5V Gearbox PM Stepper Motor, Dia 4.4mm Geared Stepper Motor

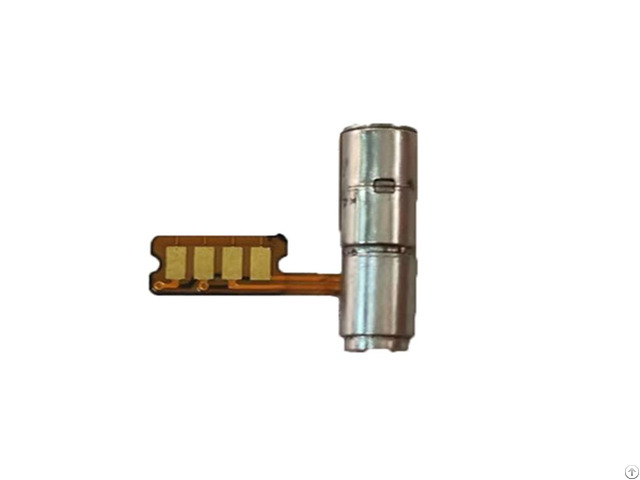

SM044PG 5V Diameter 4.4mm Micro PM Stepper Motor With Gearbox
This is a 4.4 mm stepper motor with a gearbox and gear ratio is 20.25: 1 - This motor does not have an output shaft, there is a hole on top with race track shape, when motor spins, the hole will spin as well.
You just need to design a shaft with the exact same shape, and insert shaft inside the hole, and this motor will drive your device.
This motor has very small size and it’s used on high precision devices, such as electronic products, like smart phones.
Please feel free to contact us if you are interested in buy some samples for testing.
Typical Applications
Medical instruments Precision instrument Robot Factory automation Game machine ATM equipment Security equipment Specifications Model number SM44PG
Motor type Gearbox stepper motor
Gear ratio 20.25: 1
Phase resistance 14Ω±8%
Step angle 22.5°/step
Pull-out torque 20 gf*cm Min
Excitation mode 2-2 phase exciting
Motor diameter 4.4 mm
Motor height 15 mm Competitive Advantage High quality and the best price.
Fast deliver, storage company and rich inventory
Near Shanghai port, the traffic is very convenient.
Type of Wire Connect
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Company Contact:
- Phone: +8617715451401
- Address: No.28,Shunyuan Road,Xinbei Dist, Changzhou,Jiangsu,China(M ainland), In business, China
- Email:
Published date: February 20, 2023
- Business Description: Changzhou Vic-Tech Motor Technology Co., Ltd. is a professional scientific research and production institution focusing on motor research and development, overall solution solutions for motor applications, and motor product processing and production.
Changzhou Vic-Tech Motor Technology Co., Ltd. has been specializing in the production of micro motors and accessories since 2011 - Our main products: micro stepper motors, gear motors, underwater thrusters and motor drivers and controllers.
