Hybrid Geared Stepper Motor 42mm Nema 17 High Torque With Planetary Gear Reducer - China

Product Details:

Place of Origin: China

Brand Name: V-motor

Certification: RoHS

Model Number: 42BYGH34-36PG19-connectio n line type

Payment & Shipping Terms:

Minimum Order Quantity: 1

Price: US$20~50

Packaging Details: Out packing use paper box, large quantity can use pallet

Delivery Time: 15 days

Payment Terms: L/C, T/T

Supply Ability: 100000/month 42mm(NEMA17) geared stepper motor with planetary gearbox

The 42mm Hybrid Stepper Motor Series is available with a high performance gear box.

Our gearboxes come in a high efficiency, high accuracy planetary gear configuration.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

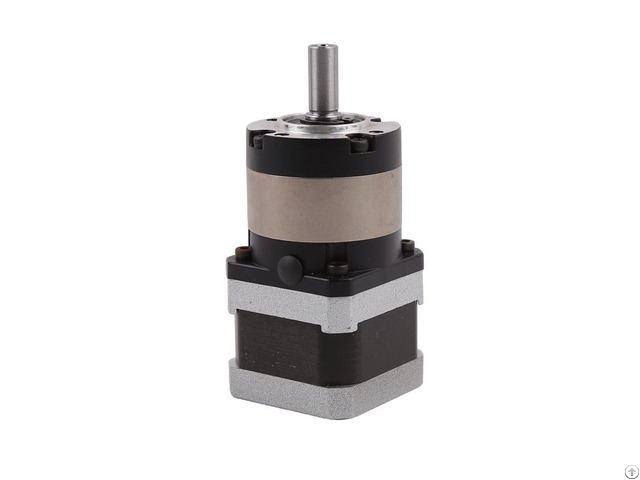

This is a 42mm square hybrid stepper motor (NEMA 17) mount with a planetary gearbox.

There are several gearbox ratio for you to choose, gear ratio from 3.71 to 719.98 Base on different gear stage, gearbox will have different length and efficiency.

1 stage: 32.2 mm length, 90% efficiency 2 stages: 40.0 mm length, 80% efficiency 3 stages: 50.0 mm length, 72% efficiency 4 stages: 57.0 mm length, 63% efficiency Please let us know the following Parameter if we are lucky to attract your interests: 1 - Voltage & Frequency

2 - Number of revolutions and direction of rotation

3 - Type of output shaft ( Our standard shaft our your customized shaft)

4 - Torque on output shaft

5 - Length of lead wire if you have requirements Motor parameter data sheet Motor type Hybrid stepper motor+planetary gearbox

Model 42BYG34-36PG19

Excitation mode 2-2 bipolar

Output shaft Φ8D7

Gearbox type Planetary gearbox

Stage & gear ratio 1 stage 3.71 5.18 2 stages 13.76 19.22 26.83 3 stages 51.06 71.30 99.55 138.99 4 stages 189.45 264.52 369.32 516.66 719.98 Output torque Motor’s torque*gear ratio*gearbox efficiency

Current range 0.4~1.7A/phase

Step angle 0.9°/1.8° optional Motor Torque vs driving speed(pps)

Hybrid Geared Stepper Motor 42mm Nema 17 High Torque Stepper Motor With Planetary Gear Reducer 0 Motor drawing:

Hybrid Geared Stepper Motor 42mm Nema 17 High Torque Stepper Motor With Planetary Gear Reducer 1 Product display:

Hybrid Geared Stepper Motor 42mm Nema 17 High Torque Stepper Motor With Planetary Gear Reducer 2 Our Company Service 1 - Sample order lead-time is about 15 days, mass quantity order lead -time is 25-30 days.

2 - We can accept payment via Mastercard, Visa, e-Checking, PAYLATER, T/T and Paypal.

3 - We can provide you professional technical support and our products quality guarantee is 12 months.

4 - We accept products customize.

including the motor parameter, lead wire type, out shaft etc.

5 - For this type motor, we can adding encoder on the motor wear cap.

our company: Hybrid Geared Stepper Motor 42mm Nema 17 High Torque Stepper Motor With Planetary Gear Reducer 3 Changzhou Vic-Tech Motor Techology Ltd. is a professional manufacturers and scientific research institution, dedicated in brushless motor development, motor application overall solutions, and motor processing and manufacturing.

Our company is located in ‘City of Chinese Micro Motor’ Changzhou, Jiangsu Province.

With beautiful scenery and convenient traffic, only 1 km away from expressway, 2 km away from railway station, 15 km away from airport.

Changzhou is between two cosmopolises, Shanghai and Nanjing, only 100km away from both cities.

Convenient logistics and timely information provide conditions for our high efficient and satisfying service.

Our company has experience of researching and developing motor over sereval decades, and we have our own developing team with experienced professional engineers and electric experts.

With capacity to design new products, provide ralted solutions based on customers’ specific requirements (including mechanical structure, drive control, motor parameters etc.

) At the same time, we have 4 manufacturer in Shenzhen, Changzhou and Dongguan to produce stepper motors, permanent-magnet motors, micro motors, and DC motors, and all of them have passed ISO9001: 2008 international quality system authentication.

We have enough capability for your big orders.
