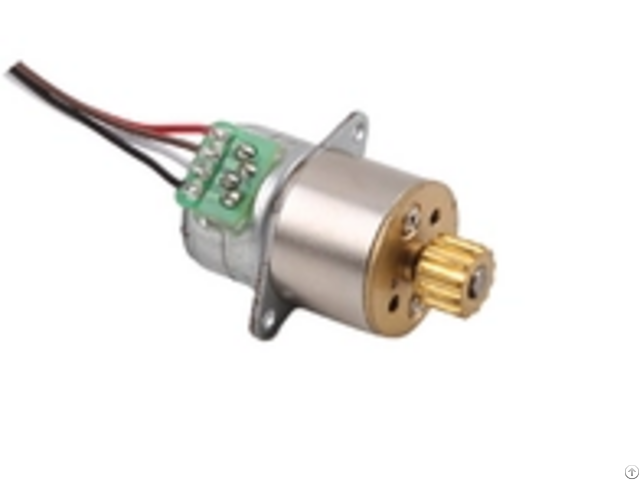

Diameter 15mm 12 Volt Geared Stepper Motor High Torque Low Speed - China

Product Details:

Place of Origin: China

Brand Name: V-motor

Certification: RoHS

Model Number: SM1516

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc

Price: US$3.15~8

Packaging Details: Samples are packaged in small cartons and pearl cotton, and bulk products are in blister boxes and cartons, and when necessary, use pallets (when the quantity is large).

Delivery Time: 15 days

Payment Terms: T/T, L/C

Supply Ability: 100000/month 15mm DC stepper gear motor GM12-15BY stepper gear motor small volume fiber optic fusion splicer The basic step angle of the motor is 18 degrees, that is, 20 steps per revolution.

With the deceleration effect of the gear box, the final angular resolution of the motor can reach 0.018~0.9 degrees, which can be used in various places requiring precise control.

The selectable gearbox ratios are: 10: 1 16: 1 20: 1 30: 1 35: 1 39: 1 50: 1 62: 1 66: 1 87: 1 102: 1 153: 1 169: 1 210: 1 243: 1 297: 1 350: 1, different speed ratios will produce different final torque and speed, customers can choose according to different torque and speed requirements.

Special ratios can also be customized.

This series of gear boxes adopts the most advanced related parts processing equipment, with high precision, high efficiency, low noise, and adopts reasonable and reliable technology, so that the products have better reliability.

The power input part and standard stepper motor can adopt the form of probe structure, FPC, FFC, PCB cable and so on.

The output of the motor part can adopt various output structures such as round shaft, D shaft, lead screw, gear, pulley and so on! When customers choose a motor, they should comprehensively consider the speed and torque while meeting the requirements.

SM15mmgearbox stepper main parameters: PRODUCT NAME 15 mm worm geared stepper motor

MODEL SM1516

VOLTAGE 5V DC

RESISTENCE 10±7%ohm (optional 20 15 10 ohm)

Rotating speed Motor pulley 112.5°/sec, i.e. 393pps drive motor

GEAR RATIO 1: 10~1: 350

OEM & ODM SERVICE AVAILABLE

Output Torque 300g.

cm

EFFICIENCY 10~20%

SPEED RANGE Motor(0~3000RPM) Out shaft(0~300rpm)
