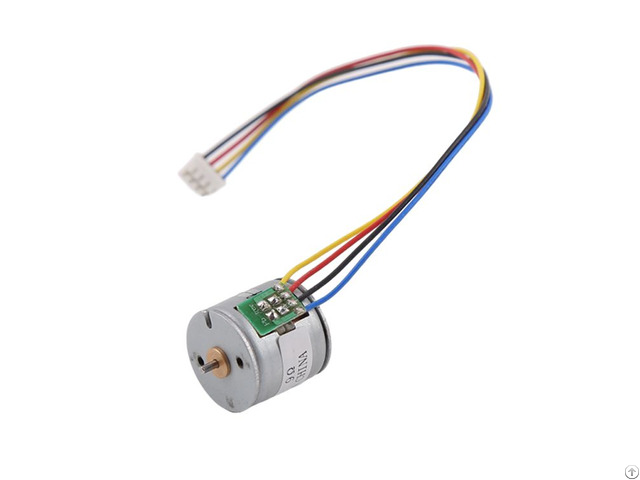

20mm Permanent Magnet Stepper Motor Can Be Matched With Gearbox - China
price: 3.20 Dollar US$
Minimum Order Quantity: 1 Unit
Price: $3.2-$5/unit
Product Name 20 mm permanent magnet stepper motor
Model 20BY45-142
Rated Voltage 12 V
Coil Resistance 100 Ω ± 7%
No.
Of phase 2 Phases
Step Angle 18 degree
Detent Torque 18 gf-cm min.
(AT 200PPS, 12.0V DC) Pull-Out Torque 23.5 gf-cm min.
(AT 200 PPS, 12.0V DC) Max.
Starting Frequency 700 PPS min.
(AT 12 V DC)
Max.
Slewing Frequency 1000 PPS min.
(AT 12 V DC)
Insulation Class Class E for Coils
Insulation Strength 600 V AC for One Second
Insulation Resistance 100 MΩ (DC 100 V)
Operating Temperature Range -15~+55 ℃
Weight 28 g(Ref.
)
OEM & ODM SERVICE AVAILABLE
Typical Applications
Medical instruments
recision instrument
Robot
Factory automation
Game machine
ATM equipment
Security equipment
Company Contact:
- Phone: +8617715451401
- Address: No.28,Shunyuan Road,Xinbei Dist, Changzhou,Jiangsu,China(M ainland), In business, China
- Email:
Published date: February 20, 2023
- Business Description: Changzhou Vic-Tech Motor Technology Co., Ltd. is a professional scientific research and production institution focusing on motor research and development, overall solution solutions for motor applications, and motor product processing and production.
Changzhou Vic-Tech Motor Technology Co., Ltd. has been specializing in the production of micro motors and accessories since 2011 - Our main products: micro stepper motors, gear motors, underwater thrusters and motor drivers and controllers.
