10mm Diameter Micro Geared Stepper Motor With Adjustable M3 Lead Screw Shaft - China
price: 3.50 Dollar US$
Product Details:
Place of Origin: China
Brand Name: Vic-Tech
Certification: RoHS
Model Number: 10-816G-M3
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: $3.5~$7/Unit
Packaging Details: Samples are packed with paper box, and mass production products are packed with standard corrugated carton.
Delivery Time: 10~20 days after the sample is paid
Payment Terms: T/T, Paypal, Credit card
Supply Ability: 100000 pc/Month Detailed Product Description
Motor Type: Gearbox Stepper Motor Motor Size: 10mm Diameter
Step Angle: 18°/ Gear Ratio Resistance: 20Ω/40Ω
Gear Ratio: From 2: 1 To 1000: 1 Output Shaft: M3*0.5P Lead Screw
High Light: 18 degree micro geared stepper motor, 10mm diameter micro geared stepper motor, stepper motor with gear box

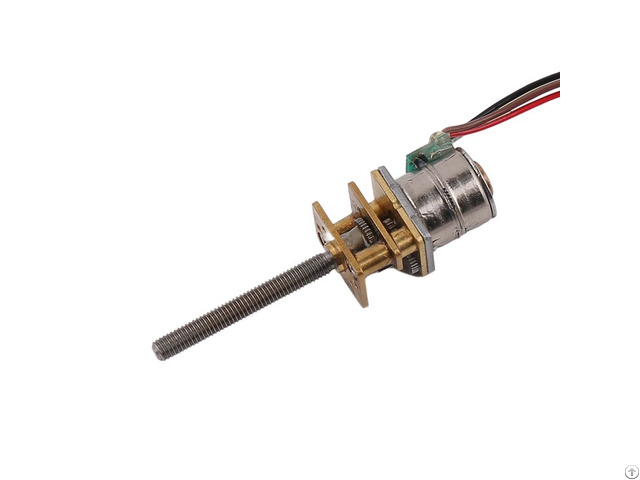

10-816G-M3 Gearbox Reducer Stepper Motor With Adjustable M3 Lead Screw Shaft Description: This is a 10mm diameter stepper motor attached with a 10*12mm gearbox.
Output shaft is standard M3 lead screw shaft, and we can also change it into D shaft.
Lead screw length is adjustable, based on customer’s own need.
We have multiple gear ratio for option, from 2: 1 to 1000: 1 - With a bigger gear ratio, output torque is bigger, and output speed is slower.
Customer need to choose a suitable gear ratio first.
We have two different coil resistance: 20Ω/ 40Ω With higher resistance, motor will have higher rated voltage.
Motor Parameters: Model No.
10-816G-M3
Motor type 10mm stepper motor
Output shaft M3*0.5P
Coil resistance 20Ω/40Ω
Step angle 18°/step angle
Rated voltage 3.3~5V DC
Phase No.
2 phases (4 wires)
Company Contact:
- Phone: +8617715451401
- Address: No.28,Shunyuan Road,Xinbei Dist, Changzhou,Jiangsu,China(M ainland), In business, China
- Email:
Published date: February 20, 2023
- Business Description: Changzhou Vic-Tech Motor Technology Co., Ltd. is a professional scientific research and production institution focusing on motor research and development, overall solution solutions for motor applications, and motor product processing and production.
Changzhou Vic-Tech Motor Technology Co., Ltd. has been specializing in the production of micro motors and accessories since 2011 - Our main products: micro stepper motors, gear motors, underwater thrusters and motor drivers and controllers.
