Sports LED Display

6.1.1

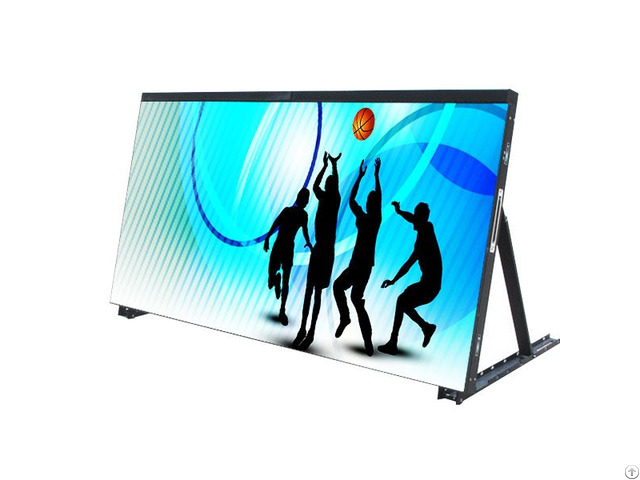

P10 stadium screen

Summary

P10 stadium screen is widely used in the field: stadium, outdoor advertising, outdoor shows, exhibition, stage, commercial use etc.

Features:

1 - GCL's outdoor advertising series, with the size of 960mm and 960mm, has three kinds with the pixel pitch of 6mm, 10mm .

2 - The square shape product can be composed from the LED cabinet with the proportion of 16: 9 and 4: 3.

3 - This LED cabinet only weighs 40kg and with depth of 100mm.

That brings the benefits for the transportation.

4 - The seamless design improves the display quality.

5 - Featuring high resolution and high brightness, it can keep high contrast level even in strong sunlight.

6 - The replace for modules costs few, without changing the original structure.

7 - This unit cabinet offers a cost-effective display solution for outdoor usage.

Specifications

ITEM P10

Pixel Pitch(mm) 10

Pixel Density(pixel/m2) 10000

Pixel Component 1R1G1B

LED Configuration SMD3535

Panel Dimension(W×H)mm 320*160

Scan Mode 1/4(1/3；1/2)

Cabinet Dimension(W×H)mm 960*960

Cabinet Material Iron/Customized

Brightness(cd/m2) ≥5000(≥6000；≥7000 )

Color Temperature 3200K-9500K

Viewing Angle(V) 140°

Viewing Angle(H) 140°

Contrast Ratio 3000: 1

Max Power Consumption(w/m2) 750

Ave Power Consumption(w/m2) 300

Operating Power Source AC85~264V(47-63Hz)

Frame Frequency(Frame/S) 60

Refresh Rate(Hz) ≥1200

Gray Level RGB65536Grade

Brightness Adjustment Level 256Grade

Brightness Adjustment Mode Manual/Automatic/Programm able

Control Distance UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km

Operating Temp ﹣20℃－﹢50℃

Operating Humidity 10%－90%RH

Protecting Rating Front: IP65, Back: IP54

MTBF ＞10000h

LED Life Span ＞100000h

LED Best View distance 5m-150m
