Outdoor Rental Display - China

Rental LED Display - Outdoor

Outdoor Rental Display

3.1

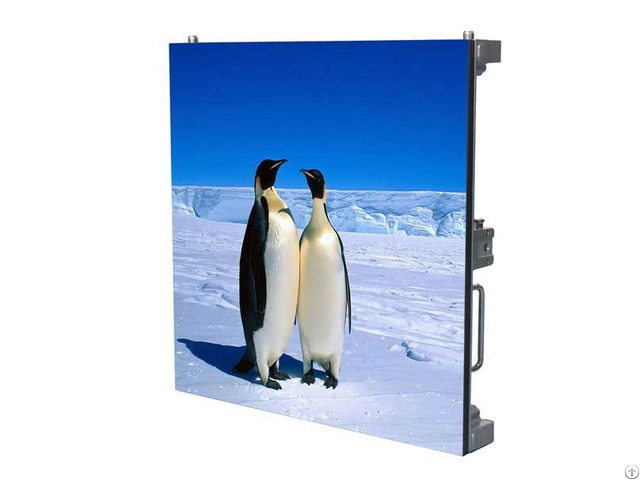

P3.91 Outdoor Rental LED Display

Summary

Outdoor Rental LED Display is widely used in the field: outdoor advertising, outdoor shows, exhibition, stage, commercial use etc.

Specifications

ITEM P3.91

Pixel Pitch(mm) 3.91

Pixel Density(pixel/m2) 65410

Pixel Component 1R1G1B

LED Configuration SMD2223

Panel Dimension(W×H)mm 250*250

Scan Mode 1/16

Cabinet Dimension(W×H)mm 500*500

Cabinet Material Die-casting Aluminum

Cabinet Weight(Kg) 15

Brightness(cd/m2) ≥5000

Color Temperature 3200K-9500K

Viewing Angle(V) 140°

Viewing Angle(H) 140°

Contrast Ratio 3000: 1

Max Power Consumption(w/m2) ≤800

Ave Power Consumption(w/m2) ≤400

Operating Power Source AC85~264V(47-63Hz)

Frame Frequency(Frame/S) 60

Refresh Rate(Hz) ≥1200

Gray Level RGB65536Grade

Brightness Adjustment Level 256Grade

Control Distance UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km

Operating Temp ﹣20℃－﹢50℃

Operating Humidity 10%－90%RH

Protecting Rating IP65

MTBF ＞10000h

LED Life Span ＞100000h

LED Best View distance 5m-150m
