Indoor Led Screen - China

Fixed LED Display - Indoor

4.1

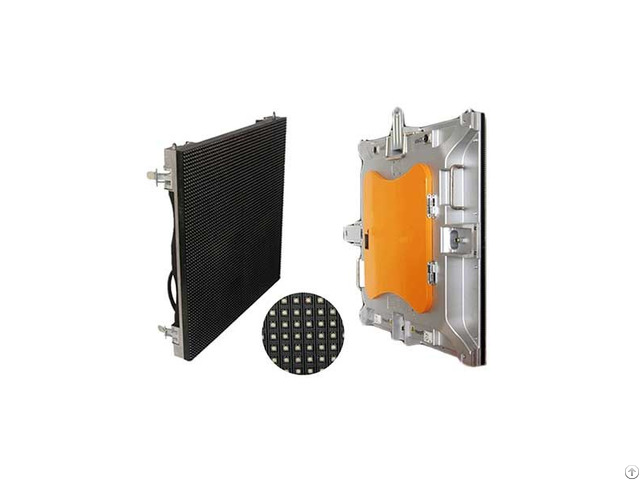

P3 Indoor Led Screen

Summary

Indoor High-Definition Series is widely used in the field: outdoor advertising, outdoor shows, exhibition, stage, commercial use etc.

Features:

1 - GCL's indoor advertising series, with the module size of 192mm*96mm and 96mm*96mm.

2 - This series of LED Display has two kinds of cabinet size(iron material: 768mm*768mm, AL material: 480mm*480mm).




3 - This LED cabinet only weighs 30kg per squar-meter and with depth of 100mm.

That brings the benefits for the transportation.

4 - The replace for modules costs few, without changing the original structure.

5 - This unit cabinet offers a cost-effective display solution for indoor usage.

Specifications

ITEM P3

Pixel Pitch(mm) 3.0

Pixel Density(pixel/m2) 111111

Pixel Component 1R1G1B

LED Configuration SMD2121

Panel Dimension(W×H)mm 240*240

Scan Mode 1/20

Cabinet Dimension(W×H)mm 480*480

Cabinet Material Die-casting Aluminum

Cabinet Weight(㎏) 7.0

Brightness(cd/m2) ≥1000( Color Temperature6500K)

Color Temperature 3200K-9500K

Viewing Angle(V) 140°

Viewing Angle(H) 140°

Contrast Ratio 3000: 1

Max Power Consumption(w/m2) 1200

Ave Power Consumption(w/m2) 480

Operating Power Source AC85~264V(47-63Hz)

Frame Frequency(Frame/S) 60

Refresh Rate(Hz) ≥1920

Gray Level RGB65536Grade

Brightness Adjustment Level 256Grade

Brightness Adjustment Mode Manual/Automatic/Programm able

Control Distance UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km

Operating Temp ﹣20℃－﹢50℃

Operating Humidity 10%－90%RH

Protecting Rating IP31

MTBF ＞10000h

LEDLife Span ＞100000h

LEDBest View distance 5m-150m

Company Contact:

• Posted By: Shenzhen GCL Electronics Co.,Ltd

• Phone: +86-755-89360615

• Address: Block B,Yasen industrial park,No.8 Chengxin Road,Longgang istrict,Shenzhen,China, Shenzhen , Guangdong , China

• Email:

• Website: https://www.gcled.com

• Business Description: GCL, founded in 1999, is a leading product and application solution provider for full-color LED display and LED lighting in China.

  With the registered capital of 30, 010, 000 yuan, the company lies in Baolong Industrial Park, Longgang District, Shenzhen.

  It has a workshop of 10000 m2, with an electronic workshop and an assembly workshop equipped with automatic production equipment such as plug-in machines and SMT machines as well as inspection equipment such as high- and low-temperature aging, vibration, waterproof test equipment, integrating sphere, and spectrographs, achieving an annual capacity up to hundreds of millions yuan.

  The company has been granted with more than ten LED application products-related patents and certified in compliance with the ISO9001 and ISO14000 standards.

  Its products have also been certified with multiple standards, including CCC, FCC, CE, Rhos, UL, EMC, and ETL.

  Up to now, the company has set up multiple regional offices and representative offices around the world, and exported its products to more than 60 countries and regions.

  It has completed more than 6, 000 projects in total.

  Moreover, it has successfully provided LED display and lighting solutions to worldwide projects such as FIFA World Cup in South Africa, Shanghai Expo, China-Asean Expo, Turkmenistan Pavilion in Milan Expo.

  Welcome the people from all industries to our company for visit, investigation and cooperation!
