Enec Approved 120w Modular Design Led Street Lanterns - China

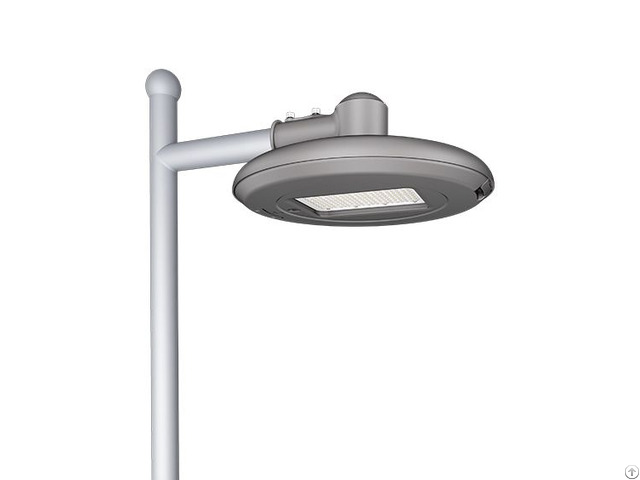

Enec approved 120w modular design led street lanterns

series h4 led street light

model

zgsm-ld120h4

application

street | road | highway | parking lot | bridge | path

led street light supplier: hangzhou zgsm technology co., ltd

key features

1 - wide power range: 35w~320w.

2 - special circuit design, single leds damage won't affect others' normal work.

3 - modular design and tool-less open for easy replacement and maintenance.

4 - power-off protection makes the power automatically off when fixture is opened (optional).

5 - level bubble makes it easy for the installer to adjust the position of the lamp.

6 - breather ensures air balance inside and outside of driver box of the lamp.

7 - high lumen output up to 165lm/ w with high quality led chips.

8 - 1000 hours salt spray test report.

9 - vertical and horizontal installation both available, adjustable by 15in both directions.

10 - multiple lighting control options are available, e.g. dali, 1-10v, photocell, motion sensor.

11 - designed to last at least 100, 000 hours at l70.

12 - multiple lighting distributions are available.

13 - ce, rohs, gs, cb, lm80, fcc, ip66, ik10

14.7 years warranty specifications

specifications

model zgsm-ld120h4

ledbrand lumileds3030/5050

driverbrand meanwellorinventronics


norminalwattage 120w

ledmodulequantity 3modules

inputvoltage 100-240/277vac/dc24v

powerefficiency >90%

powerfactor >0.95

lampratedluminouseffic iency 140-165lm/w

lampratedlumenoutput 16800-19800lm(lumentolera nce+/-5%)

colorrenderingindex 70(80optional

colortemperature 3000kor4000kor5000kor5700 k

photometrictype typeimedium;typeiimedium; typeiiimedium, typev, short

optimaloperatingtemper ature 25

storagetemperatures -40c~50c

workingenvironment between-40c~+50c, 10%~90%rh

totalharmonicdistortio n <10%

lumenmaintenance >100000hours-l70, @25c(77f)

windindex force12

body die-castaluminumhousing

cover pclens

polefitterdiameter 60mm(50mmoptional)

rating ip66ik10

protection classi(classiioptional)

spd 10kv(20kvoptional)

certification ce, rohs, enec, cb, lm80, lm79, fcc, ip66, ik10

dimmingoptions 1-10vordaliorpwmortimer

controloptions photocellormotionsensoror smartcontrol

coloroptions silverorblack

warranty 7years packing details

packingdetails

fixturedimension 577x316x136mm

fixtureweight 7.3kg/16.1lbs

packingdimension 630x370x200mm

packingweight 8.6kg/19.0lbs
