Ceramic Circuit Board With Led Heat Dissipation And Long Service Life - China

Folysky Technology (Wuhan) Co., Ltd.is a professional high-tech enterprise engaging in planar and curved non-metallic base planel, electronic circuit board and electronic components which integrates research and development, production and sales.

It has a unique technical advantage in the direct graphics of PCB by developing the powerful wuhan photoelectric national laboratory.

The company's main product is ceramiccircuit board, such as alumina ceramic circuit board, aluminum nitride ceramiccircuit board, zirconia ceramic circuit board, glass circuit board, LEDceramic circuit board (including 2D and 3D circuit board), with self-developed technology of Laser rapid Activation Metallization (Laser Activation Metallization, LAM technology for short).

High bonding strength and good electrical performance between metal and ceramic can be repeated welding.

Metal layer thickness is adjustable in 1 mu m - 1 mm.

L/S resolution can reach 10μm, which can realize sealing plating directly, form double-sided substrate, and provide customized, high density PCB solutions for customers.

At present, the conventional LED lighting system on the market has the quality problems caused by poor heat dissipation and short life of the driving power.

The inconvenience of maintenance and repair also limits the LED lamp's comprehensive replacement of traditional lamps to a certain extent.

The ceramic circuit board produced by our company has a strong heat dissipation capacity, and the installation of ceramic circuit board on the LED lamp is long life! You are totally worth it.

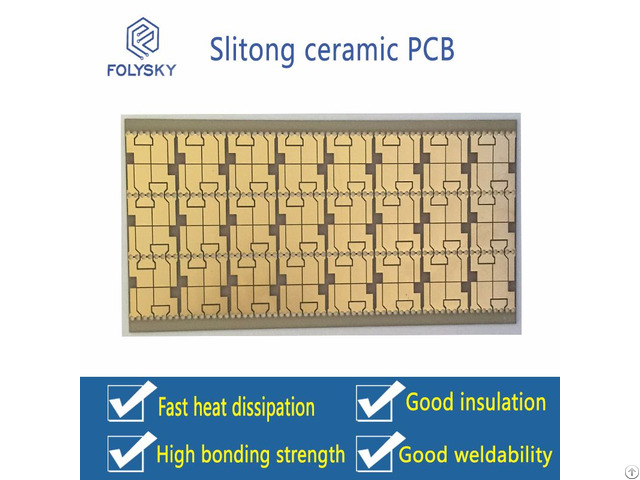

3535 technical parameters of ceramic circuit board:

Base material type: alumina ceramics

Substrate material thickness: 0.5mm

Conductive layer: Copper

Thickness of metal layer: 35 mu m/35 mu m

Surface treatment: heavy silver

One side / double side of metal: double side

Copper plated through holes: Yes

Resistance welding: Yes
