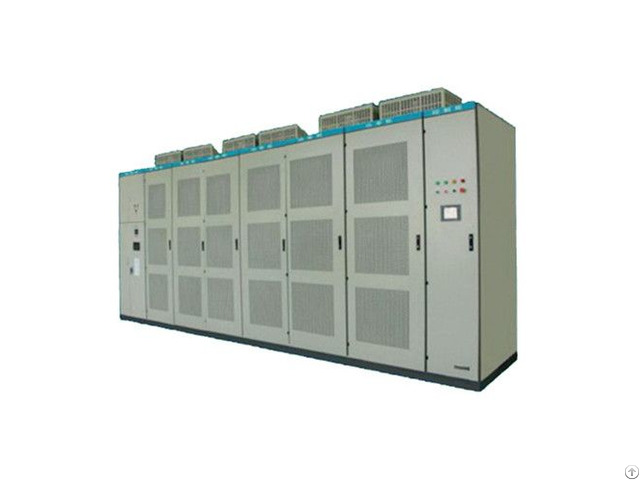

High Voltage Dynamic Reactive Power Compensation Device - China

SVG also known as high voltage dynamic reactive power compensation generating device or static synchronous compensator, which is an equipment providing dynamic reactive power compensation through the self-commutated of the power semiconductor bridge converter.

High Voltage Automatic Compensator is widely used in petroleum chemical industry, metallurgy, electric power, coal, electric railway, wind power station, as well as some other industrial fields with or near the impact load and large capacity motor.

And plays an important role in saving energy and reducing consumption, improving power grid security and stability, increasing power grid power factor, improving power quality, etc.

Providing concentrated compensation to improve the power factor for 3~10KV power supply network

• Based on DSP full digital control system, fast dynamic response time and high control precision

• Adopt photo electric trigger mode, high potential plate and high voltage-energy, thyristor switched capacitor protection, and strong anti-interference ability

• The intergranular valve group adopts horizontal design, with compact equipment, reliable operation, and less maintenance workload

Company Contact:

• Posted By: Huainan Wantai Electric Co., Ltd

• Phone: +865544333789

• Address: Pingwei Industrial Park, Panji District, Huainan City, Anhui, China, Huainan , CHINA , China

• Email:

• Business Description: Founded in 1998, now the net worth is 430 million yuan, focused on the research and development, production and sales of the intelligent terminal equipment and safety monitoring automation control system, is committed to providing the systematic solution for the coal mine safety and efficient management.

  Our products export to Southeast Asia, Russia, Turkey, Africa and other countries.

  Since 2007, We have set up three branches, formed the WANTAI integrated industrial park.

  The main underground products are personnel position system, microseismic monitoring system, frequency converter, high-low voltage starter, intelligent multi-function combination switch, electronic control monitoring system, soft starter, feeder switch, lighting comprehensive protection device, mine lamp, etc.

  Whats more, we have high and low voltage electrical equipment which the voltage is 35KV and below, such as KYN61-40.5, XGN, GGD, MNS, GCS, KY-WTGD-1, KY-WTGD-10(6), XL-21, YBM-12 box transformer substation, cable branch box, PLC control system, background monitoring and so on.

  They have been widely used in the field of infrastructure, energy, industrial, commercial and residential buildings etc.
