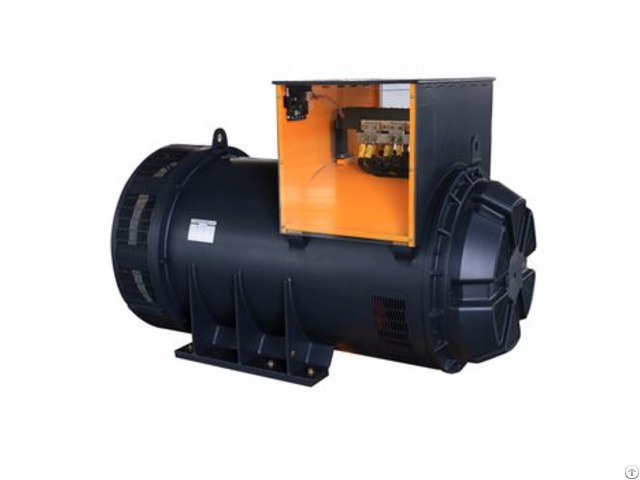

Three Phase Synchronous Generators - China

EvoTec Power Generation Co., Ltd is located in one of the fastest developing industrial park in Hefei City¬¬¬¬¬¬¬¬ of China.

The central facility covers a vast area of 132, 000 square meters.

It specifically caters for our current and future’s development and business advancement.

It is our commitment to ensure that we are able to support the continuous growth pace of our Customers and parallel, answering to any acute market demands.

Technical Features

Duty rating: S1 Number of poles 4

Winding pitch: 2/3 Frames: 188 to 568

Phase sequence: UVW Powers: up to 4000kVA

Terminal: 6 and 12 leads Frequency: 50Hz to 60Hz

Voltage regulation: +/- 0.5% Power factor : 0.8 lagging

Speed: 1500rpm or 1800rpm Low voltage: 110V to 690V

Maximum unbalance load: 25% High voltage: 3300V to 13800V

Overload: 10% for 1 hour in every 12 hours Direction of rotation: CW from drive end

Over-speed: 1.2 times normal speed for 2 minutes Harmonic distortion factor: < 3% for three-phase

Degree of Protection: IP21 (IP23, IP44, IP54 on request) Temperature rise class: 180°C (Class H) low voltage

Short circuit withstand capability: 3 times at full load current Insulation class: 180°C (Class H) LV and 155°C (Class F) MV and HV

Company Contact:

• Posted By: Anhui EvoTec Power Generation Co., Ltd

• Phone: +86 0551 87717188

• Address: No.9 Su He Road, Lujiang Economic Development Zon, Hefei , China

• Email:

• Website: https://www.evotecpower.com

• Business Description: EvoTec Power is a reputable global supplier and manufacturer of a.c.

  synchronous generator (alternators) ranging from 20kVA to 3500kVA at

  50Hz, 1500rpm and 24kVA to 4500kVA at 60Hz, 1800rpm.

  EvoTec Power is located in Lujiang Economic Development Zone in Hefei City, Anhui Province in China.

  Our land bank covers a vast area of about 150, 000 m² and capable of producing 40, 000 alternators of various sizes per year.

  Our factory is modern, with the latest design production flow system under one roof and having the biggest Vacuum Pressure Impregnation System (VPI) in Anhui Province.

  EvoTec Power is accredited with ISO 9001: 2008 and with CE marking approved.

  EvoTec Power alternators are no copy of Stamford machine and all our designs are wholly and exclusive of our own R & D technologies and as of today, we have successfully registered 8 design patents in China.

  EvoTec Power main marketing approach is to be the world s factory, meaning we can produce our alternators on behalf of any customers who wish to have their own brand name and name plate plated onto the alternators so to protect their company identity and long term business interest.

  Off cause, if any customers wish to maintain our own brand name EvoTec Power, that is most welcome.

  In comparison with other alternator built in the market, EvoTec Power alternators efficiency level is much higher and the outlook design is more compact and shorter in length.

  This will provide substantial cost saving when incorporating EvoTec Power alternators to the G Drive engines, especially when assembling with canopy enclosure or soundproofing system.

  EvoTec Power alternators are well proven for its superior performances, high quality, durability, long operational life span, compact design and superb outlook finishing.

  In short, EvoTec Power alternators are designed and planned to please generations.

  For more information about us, please visit our website at www.

  evotecpower.

  com and if you have any question or query, please feel most welcome to write to us.

  We are ready to serve and be of service to your good company.
