250kw Diesel Generator With Shangchai Sdec Engine - China

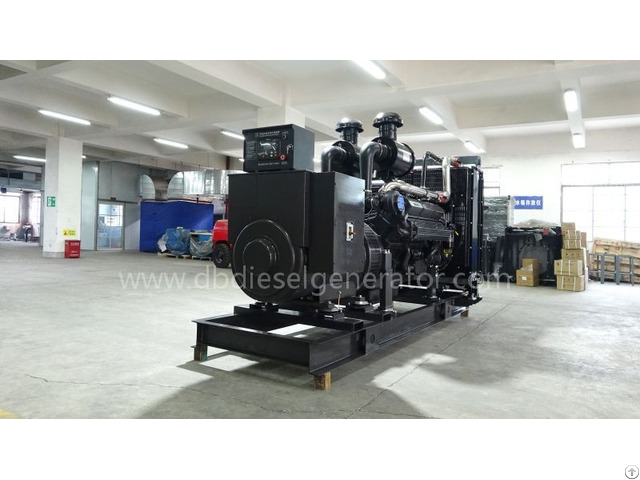

250KW 312.5KVA Diesel Generator Set Datasheet

Genset model DB-250GF

Prime power 250kW 312.5kVA

Standby power 275kW 344kVA

Rated voltage(V) 400/230 (customizable)

Rate current(A) 450A

Power factor 0.8

Frequency(Hz) 50

Speed(rpm) 1500

Phase: 3 phase 4 wire

Noise level: 105dB at 7m ( open type diesel genset) 75dB at 7m(silent type diesel genset)

Engine Specifications Manufacturer Shangchai

Model SC12E420D2

Engine output-prime 280kW Engine output-standby 308kW Frequency: 50Hz

Speed: 1500rpm

Cylinders no.

& Type: 6 cylinders, Inline, 4 stroke, diesel engine, water-cooled

Aspiration: Turbo charged and air-to-air intercooled

Bore*stroke 128*135mm

Displacement 11.8L

Compression Ratio 17: 1

Governor Electronic speed governor

Starter motor voltage: 24V DC

Type Injection System: direct injection

Oil pan capacity(High/Low): 36L-31L

Cooling way Water Radiator & fan

Water capacity: 23.2L

Fuel consumption-standby power (100%) 74.3L/h

Fuel consumption-prime power (100%) 66.9L/h

Fuel consumption-prime power (75%) 49L/h

Fuel consumption-prime power (50%) 33.8L/h
