Zj050na 08c Display Tft Panel Innolux Lcd - China

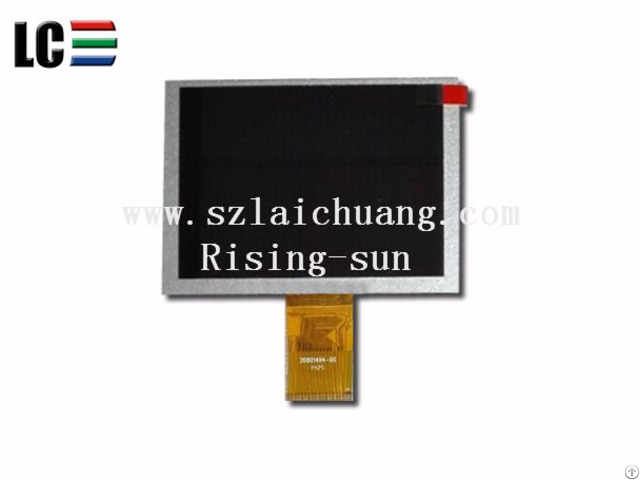

CMI Innolux display 5 inch TFT LCD ZJ050NA 08C

Productor Innolux

MODEL ZJ050NA-08C

Size 5.0"

Resolution 640*480

Resolution Name VGA

Display scale 4: 3

Pixel Arrangement RGB

Pixel Pitch 0.053*0.159 mm

Technology a-Si TFT-LCD

Display mode TN, nw, transmissive

Luminance 250 nits

Contrast Ratio 500: 1

Color 16.7M

Color Saturation 50%NTSC(CIE1931)

Response 10/15 (Tr/Td) ms

Viewing Angle 50/70/70/70

The Best View 6 o'clock

White Field Chroma X: 0.310; Y: 0.330

White Field Dynamic 1.33 (9 points)

Scanning Frequency 60Hz

The kind of Singnal Parallel

Interface Parallel

Drive-screen voltage 3.3/10.4/17.0/-7.0V (DVDD/AVDD/AVDD/VGL)

Pitch of Singnal Interface 0.5 mm

Pin of Singnal Interface 50 pins

Operation Temperature -20 °C ~ 70 °C

Storage Temperature -30°C ~ 80°C

Active Area 101.57*76.18 mm

Outline 117.65* 88.43*5.70 mm
