Wide Temperature Dg22078 - China

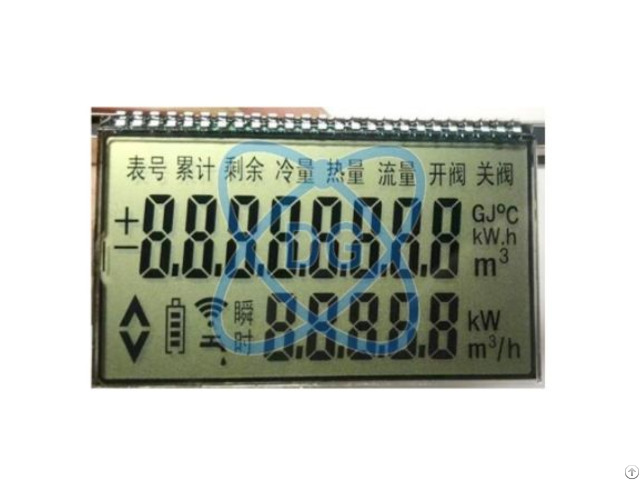

Wide temperature DG22078

Product Usage: Heat flow meter panel

Power Consumption Characteristics: Ultra-low power consumption

LCD Product Type: HTN

Temperature Characteristic: Wide temperature

Polarizer Type: Postive DG22078

1 - Boundary Dimension: 53.0*(32.5＋30.5)mm

2 - Strong Viewing Direction: 6 o’clock

3 - V-OP: 3.0V

4 - Drive Method: 1/8 DUTY; 1/3 BIAS

5 - Operating Temperature: -20℃~70℃

6 - Storage Temperature: -30℃~80℃

7 - Polarizer: Reflective/Positive

8 - Display Type: HTN

9 - Product Usage: Heat Flow Meter Panel

Flow Meter Digital Display

Flow meter digital displays are an important aspect of flow meters because they allow users to easily see and understand the flow rate measurement.

Without a display, users would have to rely on external devices, such as data loggers or control panels, to view the flow rate, which can be inconvenient and time-consuming.

In general, flow meter LCD displays serve several important functions:

1 - Displaying the flow rate: The primary function of a flow meter display is to show the current flow rate measurement.

This allows users to easily see and understand the flow rate at a glance, which is essential for monitoring and controlling the flow of fluids and gases.

2 - Providing alerts and warnings: Many flow meters with displays have built-in alerts and warning systems that can alert users to issues such as low flow rates, high flow rates, or other problems.

These alerts can help users to quickly identify and address issues before they become serious problems.

3 - Data logging: Some flow meters with displays have data logging capabilities, allowing users to record and save flow rate measurements over time.

This can be useful for tracking trends, identifying problems, and optimizing processes.
