Utsource Electronic Components Tlp251 - USA
price: 0.41 Dollar US$
1 - Description

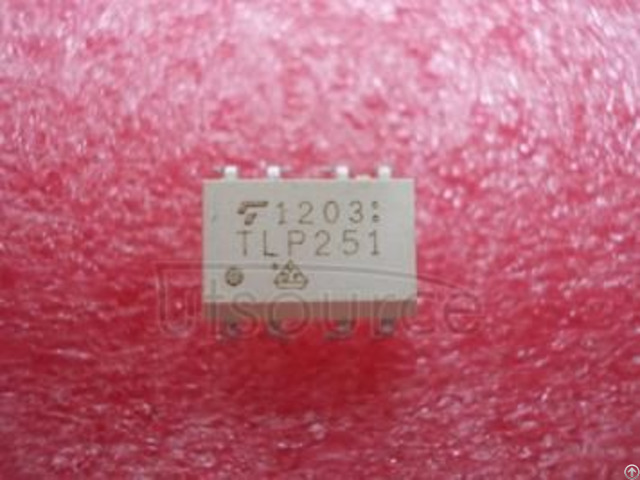

The TOSHIBA TLP251 consists of a GaAlAs light emitting diode and a integrated photo detector.
This unit is 8-lead DIP package.
TLP251 is suitable for gate driving circuit of IGBT or power MOS FET.
Especially TLP251 is capable of“direct” gate drive of lower power IGBTs.
(—‘15A)
2 - Features >Input Threshold Current : IF=51ThA (Max.
)
>Supply Current (TcC) : limA (Max.
)
>Supply Voltage (VCC) : 1O—35V
>Output Current () : ±O.
4A (Max.
)
>Switching Time (tPLH/tPHL) : 1us (Max.
)
>Isolation Voltage : 2500Vrms (Mm.
)
>UL Recognized : UL1577, File No.
E67349
Company Contact:
- Posted By: UTSOURCE HOLDING Co., Ltd
- Phone: 6267574001
- Address: 2321 W Norwood Pl, Alhambra , CA , USA
- Email:
- Website: https://www.utsource.net
Published date: April 14, 2017
- Business Description: UTSOURCE is a professional purchasing B2B & B2C tools in electronic components field.
UTSOURCE provides different types such as IC, Modules, RF transistors etc., and various product type's PDF parameter form as well as the related photographs, we also provide satisfying one-stop package service for customers.
