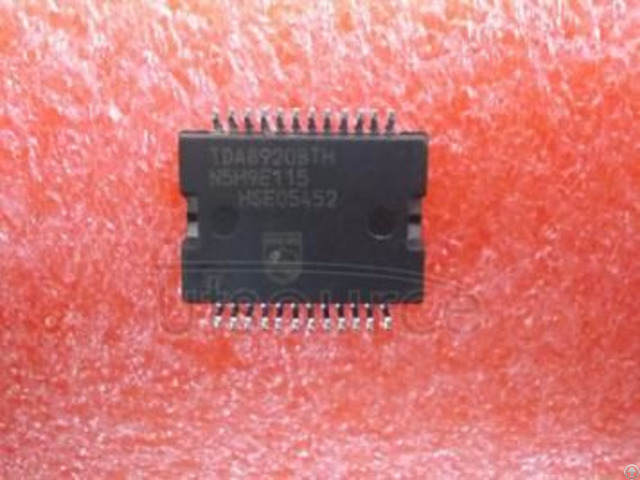

Utsource Electronic Components Tda8920bth - USA
price: 2.40 Dollar US$
1 - Description
The TDA8920B is a high efficiency class-D audio power amplifier with very low dissipation.
The typical output power is 2 × 100 W.
The device is available in the HSOP24 power package and in the DBS23P through-hole power package.
The amplifier operates over a wide supply voltage range from ±12.5 V to ±30 V and consumes a very low quiescent current.
2 - Features > Zero dead time switching
> Advanced current protection: output current limiting
> Smooth start-up: no pop-noise due to DC offset
> High efficiency
> Operating supply voltage from ±12.5 V to ±30 V
> Low quiescent current
> Usable as a stereo Single-Ended (SE) amplifier or as a mono amplifier in Bridge-Tied Load (BTL)
> Fixed gain of 30 dB in Single-Ended (SE) and 36 dB in Bridge-Tied Load (BTL)
> High output power
> High supply voltage ripple rejection
> Internal switching frequency can be overruled by an external clock
> Full short-circuit proof across load and to supply lines
> Thermally protected.
Company Contact:
- Posted By: UTSOURCE HOLDING Co., Ltd
- Phone: 6267574001
- Address: 2321 W Norwood Pl, Alhambra , CA , USA
- Email:
- Website: https://www.utsource.net
Published date: April 5, 2017
- Business Description: UTSOURCE is a professional purchasing B2B & B2C tools in electronic components field.
UTSOURCE provides different types such as IC, Modules, RF transistors etc., and various product type's PDF parameter form as well as the related photographs, we also provide satisfying one-stop package service for customers.
