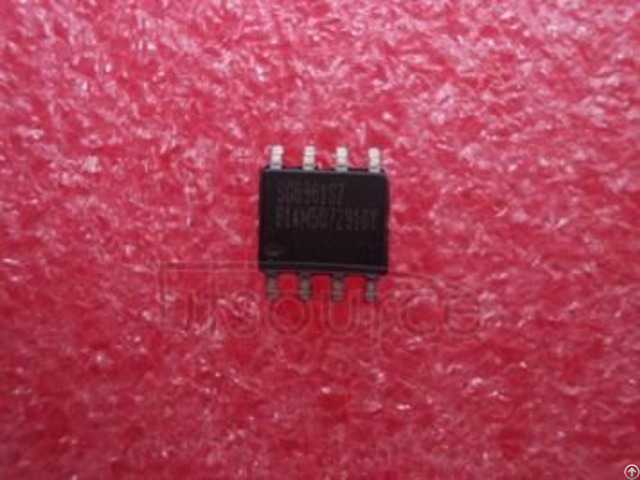

Utsource Electronic Components Sg6961sz - USA
price: 0.48 Dollar US$
1 - Description
The SG6961 is an 8-pin boundary mode PFC controller IC intended for controlling PFC pre-regulators.
The SG6961
provides a controlled on-time to regulate the output DC voltage and achieve natural power factor correction.
The maximum on-time of the external switch is programmable to ensure safe operation during AC brownouts.
An innovative multi-vector error amplifier is built in to provide rapid transient response and precise output voltage clamping.
A built-in circuit disables the controller if the output feedback loop is opened.
The start-up current is lower than 20μA and the operating current is under 4.5mA.
The supply voltage can be up to 20V, maximizing application flexibility.
2 - Features >Boundary Mode PFC Controller
>Low Input Current THD
>Controlled On-Time PWM
>Zero-Current Detection
>Cycle-by-Cycle Current Limiting
>Leading-Edge Blanking Instead of RC Filtering
>Low Start-up Current (10μA Typical)
>Low Operating Current (4.5mA Typical)
>Feedback Open-Loop Protection
>Programmable Maximum On-Time (MOT)
>Output Over-Voltage Clamping Protection
>Clamped Gate Output Voltage 16.5V
Company Contact:
- Posted By: UTSOURCE HOLDING Co., Ltd
- Phone: 6267574001
- Address: 2321 W Norwood Pl, Alhambra , CA , USA
- Email:
- Website: https://www.utsource.net
Published date: April 18, 2017
- Business Description: UTSOURCE is a professional purchasing B2B & B2C tools in electronic components field.
UTSOURCE provides different types such as IC, Modules, RF transistors etc., and various product type's PDF parameter form as well as the related photographs, we also provide satisfying one-stop package service for customers.
