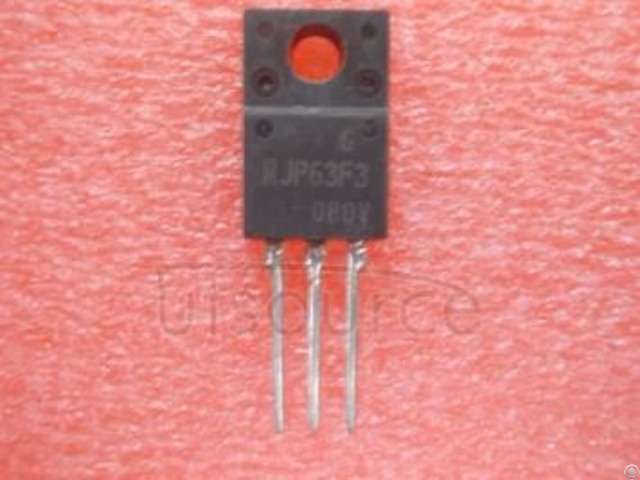

Utsource Electronic Components Rjp63f3 - USA
price: 0.38 Dollar US$
1 - Description
Collector to emitter voltage VCES 630 V Gate to emitter voltage VGES ±30 V Collector current IC 40 A Collector peak current ic(peak) Note1 200 A Collector dissipation PC Note2 30 W Junction to case thermal impedance θj-c 4.17 °C/ W Junction temperature Tj 150 °C Storage temperature Tstg –55 to +150 °C
2 - Features
> Trench gate and thin wafer technology (G6H series)
> Low collector to emitter saturation voltage VCE(sat) = 1.7 V typ
> High speed switching tf = 100 ns typ
> Low leak current ICES = 1 μA max
> Isolated package TO-220FL
Company Contact:
- Posted By: UTSOURCE HOLDING Co., Ltd
- Phone: 6267574001
- Address: 2321 W Norwood Pl, Alhambra , CA , USA
- Email:
- Website: https://www.utsource.net
Published date: April 19, 2017
- Business Description: UTSOURCE is a professional purchasing B2B & B2C tools in electronic components field.
UTSOURCE provides different types such as IC, Modules, RF transistors etc., and various product type's PDF parameter form as well as the related photographs, we also provide satisfying one-stop package service for customers.
