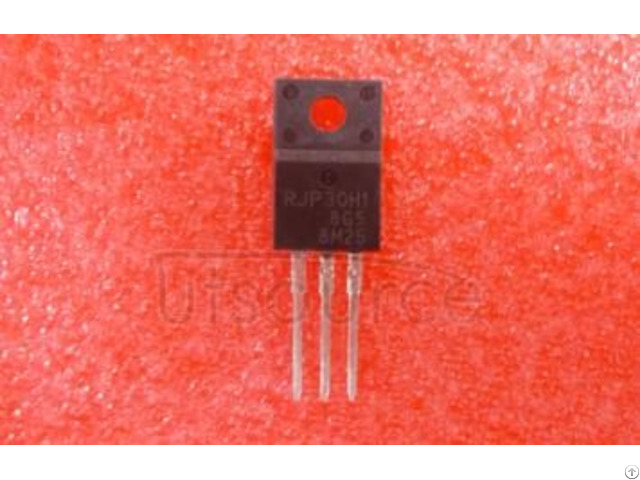

Utsource Electronic Components Rjp30h1 - USA
price: 0.38 Dollar US$
1 - Description
Collector to emitter voltage VCES 360 V
Gate to emitter voltage VGES ±30 V
Collector current IC 30 A
Collector peak current ic(peak) Note1 200 A
Collector dissipation PC Note2 40 W
Junction to case thermal impedance qj-c 3.13 °C/W
Junction temperature Tj 150 °C
Storage temperature Tstg –55 to +150 °C
2 - Features
> Trench gate and thin wafer technology (G6H-II series)
> High speed switching: tr = 80 ns typ., tf = 150 ns typ.
> Low collector to emitter saturation voltage: VCE(sat) = 1.5 V typ.
> Low leak current: ICES = 1 mA max.
3 - Applications
MOSFET and IGBT module inverter driver for PDP, HID lamp, refrigerator, air-conditioner, washing machine, AC servomotor and general purpose.
Company Contact:
- Posted By: UTSOURCE HOLDING Co., Ltd
- Phone: 6267574001
- Address: 2321 W Norwood Pl, Alhambra , CA , USA
- Email:
- Website: https://www.utsource.net
Published date: April 20, 2017
- Business Description: UTSOURCE is a professional purchasing B2B & B2C tools in electronic components field.
UTSOURCE provides different types such as IC, Modules, RF transistors etc., and various product type's PDF parameter form as well as the related photographs, we also provide satisfying one-stop package service for customers.
