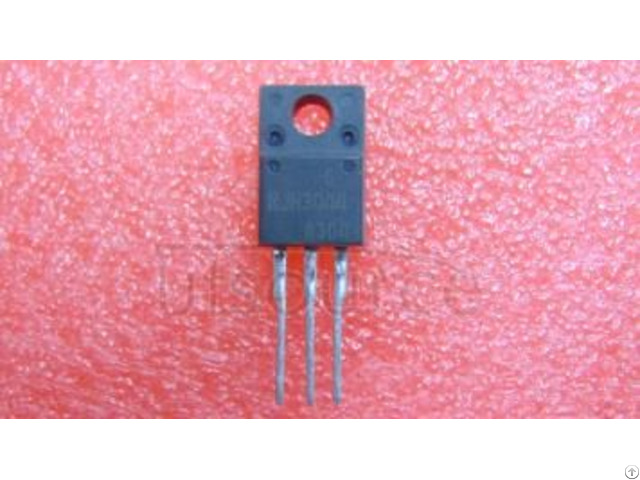

Utsource Electronic Components Rjh3044 - USA
price: 0.45 Dollar US$
1 - Description
Collector to Emitter voltage VCES 360 V
Gate to Emitter voltage VGES ±30 V
Collector current Ic 35 A
Collector peak current ic(peak) Note1 250 A
Collector to emitter diode Forward peak current iDF(peak) Note1 100 A
Collector dissipation PC Note2 60 W
Junction to case thermal impedance qj-c 2.08 °C/ W
Junction temperature Tj 150 °C
Storage temperature Tstg –55 to +150 °C
2 - Features
> Trench gate and thin wafer technology (G6H-II series)
> High speed switching: tr =80 ns typ., tf = 150 ns typ.
> Low collector to emitter saturation voltage: VCE(sat)= 1.5 V typ.
> Low leak current: ICES = 1 mA max.
> Built-in Fast Recovery Diode: VF = 1.4 V typ., trr = 23 ns typ.
> Isolated package: TO-220FL
Company Contact:
- Posted By: UTSOURCE HOLDING Co., Ltd
- Phone: 6267574001
- Address: 2321 W Norwood Pl, Alhambra , CA , USA
- Email:
- Website: https://www.utsource.net
Published date: May 4, 2017
- Business Description: UTSOURCE is a professional purchasing B2B & B2C tools in electronic components field.
UTSOURCE provides different types such as IC, Modules, RF transistors etc., and various product type's PDF parameter form as well as the related photographs, we also provide satisfying one-stop package service for customers.
