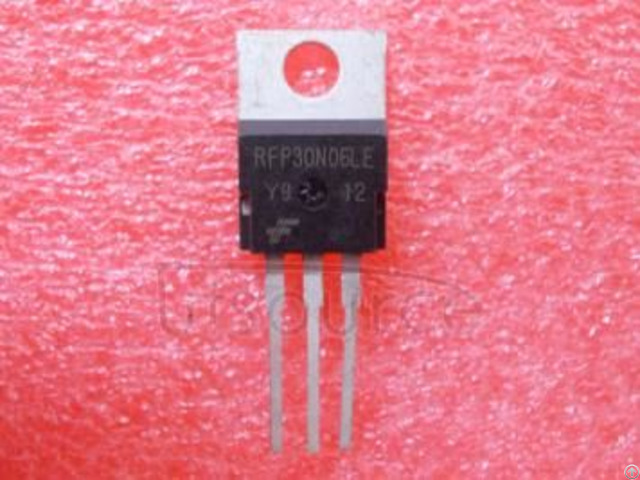

Utsource Electronic Components Rfp30n06le - USA
price: 0.36 Dollar US$
1 - Description
These are N-Channel power MOSFETs manufactured using the MegaFET process.
This process, which uses feature sizes approaching those of LSI integrated circuits gives optimum utilization of silicon, resulting in outstanding performance.
They were designed for use in applications such as switching regulators, switching converters, motor drivers and relay drivers.
These transistors can be operated directly from integrated circuits.
2 - Features
> 30A, 60V
> rDS(ON) = 0.047?
> 2kV ESD Protected
> Temperature Compensating PSPICE? Model
> Peak Current vs Pulse Width Curve
> UIS Rating Curve
> Related Literature
- TB334 “Guidelines for Soldering Surface Mount
Components to PC Boards”
Company Contact:
- Posted By: UTSOURCE HOLDING Co., Ltd
- Phone: 6267574001
- Address: 2321 W Norwood Pl, Alhambra , CA , USA
- Email:
- Website: https://www.utsource.net
Published date: April 28, 2017
- Business Description: UTSOURCE is a professional purchasing B2B & B2C tools in electronic components field.
UTSOURCE provides different types such as IC, Modules, RF transistors etc., and various product type's PDF parameter form as well as the related photographs, we also provide satisfying one-stop package service for customers.
