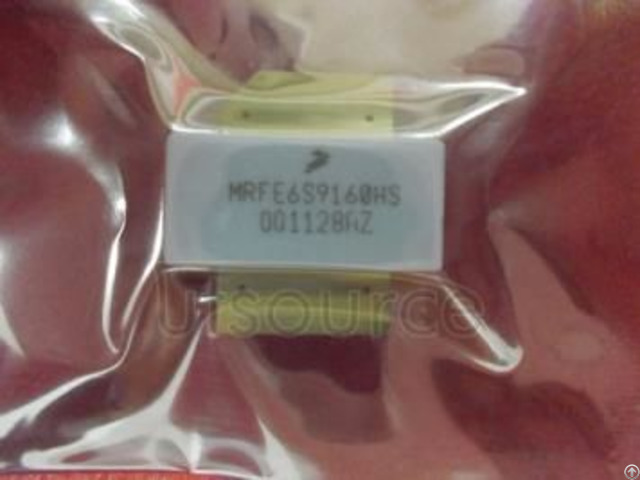

Utsource Electronic Components Mrfe6s9160hs - USA
price: 15.94 Dollar US$
Description
Designed for N - CDMA, GSM and GSM EDGE base station applications with frequencies from 865 to 960 MHz.
Suitable for multicarrier amplifier applications-Typical Single-Carrier N-CDMA.
Performance @ 880 MHz: VDD = 28 Volts, IDQ = 1200 mA, Pout = 35 Watts Avg., IS-95 CDMA (Pilot, Sync, Paging, Traffic Codes 8 Through 13) Channel Bandwidth = 1.2288 MHz.
PAR = 9.8 dB @ 0.01% Probability on CCDF.
Power Gain ó 21 dB Drain Efficiency ó 31% ACPR @ 750 kHz Offset ó -46.8 dBc in 30 kHz Bandwidth-Capable of Handling 10: 1 VSWR, @ 32 Vdc, 880 MHz, 3 dB Overdrive, Designed for Enhanced Ruggedness Features
-Characterized with Series Equivalent Large-Signal Impedance Parameters
-Internally Matched for Ease of Use
-Qualified Up to a Maximum of 32 VDD Operation
-Integrated ESD Protection
-RoHS Compliant
-In Tape and Reel.
R3 Suffix = 250 Units per 56 mm, 13 inch Reel.
