1 - Description

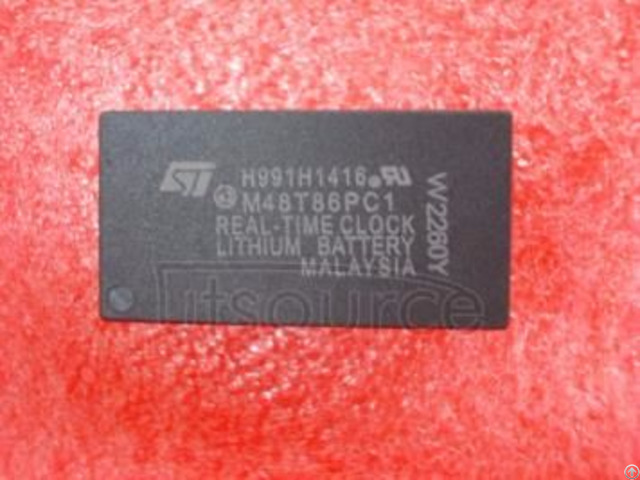

The M48T86 is an industry standard real time clock (RTC).

The M48T86 is composed of a lithium energy source, quartz crystal, write-protection circuitry, and a 128 byte RAM array.

This provides the user with a complete subsystem packaged in either a 24-pin DIP CAPHAT or 28-pin SNAPHAT SOIC.

Functions available to the user include a non-volatile time-of-day clock, alarm interrupts, a one-hundred-year clock with programmable interrupts, square wave output, and 128 bytes of nonvolatile static RAM.

2 - Features

> DROP-IN REPLACEMENT for PC COMPUTER CLOCK/CALENDAR

> COUNTS SECONDS, MINUTES, HOURS, DAYS, DAY of the WEEK, DATE, MONTH and YEAR with LEAP YEAR COMPENSATION

> INTERFACED WITH SOFTWARE AS 128 RAM LOCATIONS:

– 14 Bytes of Clock and Control Registers

– 114 Bytes of General Purpose RAM

> SELECTABLE BUS TIMING (Intel/Motorola)

> THREE INTERRUPTS are SEPARATELY SOFTWARE-MASKABLE and TESTABLE

– Time-of-Day Alarm (Once/Second to Once/Day)

– Periodic Rates from 122μs to 500ms

– End-of-Clock Update Cycle

> PROGRAMMABLE SQUARE WAVE OUTPUT

> SELF-CONTAINED BATTERY and CRYSTAL in the CAPHAT DIP PACKAGE

> PACKAGING INCLUDES a 28-LEAD SOIC and SNAPHAT TOP

(to be Ordered Separately)

> SOIC PACKAGE PROVIDES DIRECT CONNECTION for a SNAPHAT TOP

CONTAINS the BATTERY and CRYSTAL

> PIN and FUNCTION COMPATIBLE with bq3285/7A and DS128887
