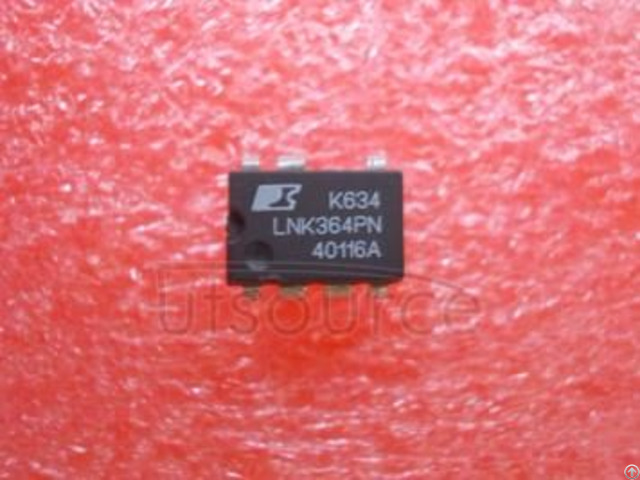

Utsource Electronic Components Lnk364pn - USA

Description

LinkSwitch-XT incorporates a 700 V power MOSFET, oscillator, simple ON/OFF control scheme, a high voltage switched current source, frequency jittering, cycle-by-cycle current limit and Minimum continuous power in a typical nonventilated enclosed adapter measured at 50 °C ambient.

2 - Minimum practical continuous power in an open frame design with adequate heat sinking, measured at 50 °C ambient.

3 - Packages: P: DIP-8B, G: SMD-8B.

Please see Part Ordering Information.

4 - See Key Application Considerations section for complete description ofAssumptions.

thermal shutdown circuitry onto a monolithic IC.

The start-up and operating power are derived directly from the DRAIN pin, eliminating the need for a bias winding and associated circuitry.

Features

Accurate hysteretic thermal shutdown protection –automatic recovery improves fi eld reliability

Universal input range allows worldwide operation

Simple ON/OFF control, no loop compensation needed

Eliminates bias winding – simpler, lower cost transformer

Very low component count – higher reliability and single side printed circuit board

Auto-restart reduces delivered power by 95% during short circuit and open loop fault conditions

High bandwidth provides fast turn on with no overshoot and excellent transient load response
