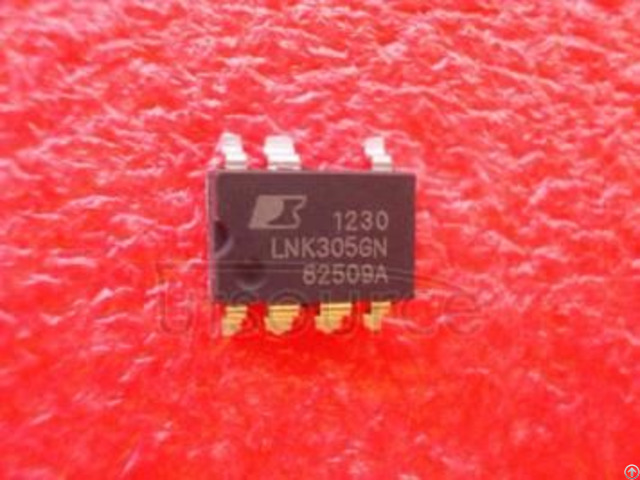

Utsource Electronic Components Lnk305gn - USA

1 - Description

LinkSwitch-TN is specifi cally designed to replace all linear and capacitor-fed (cap dropper) non-isolated power supplies in the under 360 mA output current range at equal system cost while offering much higher performance and energy effi ciency.

LinkSwitch-TN devices integrate a 700 V power MOSFET, oscillator, simple On/Off control scheme, a high voltage switched current source, frequency jittering, cycle-by-cycle current limit and thermal shutdown circuitry onto a monolithic IC.

The startup and operating power are derived directly from the voltage on the DRAIN pin, eliminating the need for a bias supply and associated circuitry in buck or fl yback converters.

The fully integrated auto-restart circuit in the LNK304-306 safely limits output power during fault conditions such as short-circuit or open loop, reducing component count and system-level load protection cost.

A local supply provided by the IC allows use of a non-safety graded optocoupler acting as a level shifter to further enhance line and load regulation performance in buck and buck-boost converters, if required.

2 - Features

> High bandwidth provides fast turn-on with no overshoot

> Current limit operation rejects line ripple

> Universal input voltage range (85 VAC to 265 VAC)

> Built-in current limit and hysteretic thermal protection

> Higher effi ciency than passive solutions

> Higher power factor than capacitor-fed solutions

> Entirely manufacturable in SMD
