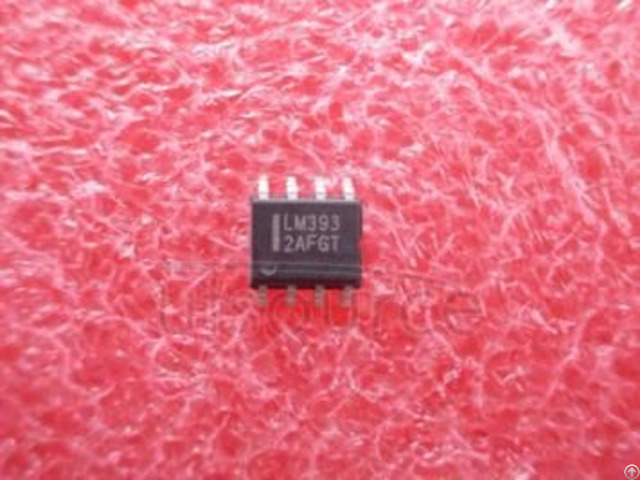

Utsource Electronic Components Lm393 - USA
price: 0.15 Dollar US$
1 - Description
The LM393 series are dual independent precision voltage comparators capable of single or split supply operation.
These devices are designed to permit a common mode range?to?ground level with single supply operation.
Input offset voltage specifications as low as 2.0 mV make this device an excellent selection for many applications in consumer, automotive, and industrial electronics.
2 - Features
> Wide Single?Supply Range: 2.0 Vdc to 36 Vdc
> Split?Supply Range: ±1.0 Vdc to ±18 Vdc
> Very Low Current Drain Independent of Supply Voltage: 0.4 mA
> Low Input Bias Current: 25 nA
> Low Input Offset Current: 5.0 nA
> Low Input Offset Voltage: 5.0 mV (max) LM293/393
> Input Common Mode Range to Ground Level
> Differential Input Voltage Range Equal to Power Supply Voltage
