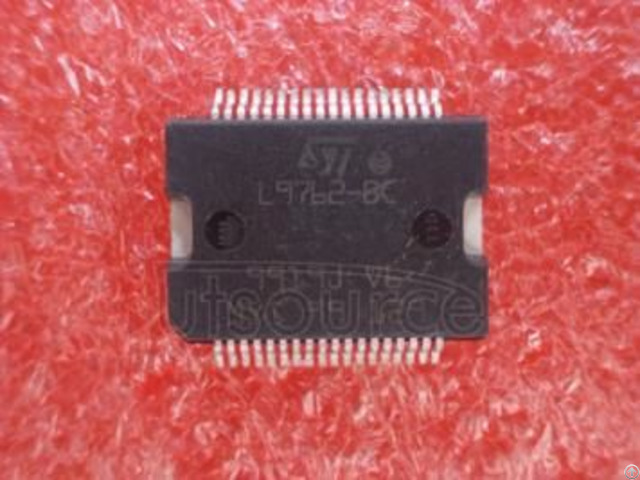

Utsource Electronic Components L9762 Bc - USA
price: 2.40 Dollar US$
1 - Description
The L9762-BC represents a high efficiency, constant frequency PWM regulator with integrated boost diode and FET.
Designed for use in white LED driving applications, the L9762-BC features efficiencies up to 85%.
It operates at1.35MHz switching frequency and operates from an input voltage of between 2.7V and 5.5V.
The maximum output voltage of 27V enables the L9762-BC to drive up to 6 LEDs in series.
It is also possible to use the L9762-BC to drive LEDs in series/parallel combination for applications requiring up to 15 LEDs.
2 - Features
> Up to 6 LEDs in series
> 27V maximum output
> 2.7V to 5.5V input
> Up to 85% efficient
> 1.35MHz constant frequency
> Enable/PWM dimming control
> Pb-free plus anneal available (RoHS compliant)
Company Contact:
- Posted By: UTSOURCE HOLDING Co., Ltd
- Phone: 6267574001
- Address: 2321 W Norwood Pl, Alhambra , CA , USA
- Email:
- Website: https://www.utsource.net
Published date: April 28, 2017
- Business Description: UTSOURCE is a professional purchasing B2B & B2C tools in electronic components field.
UTSOURCE provides different types such as IC, Modules, RF transistors etc., and various product type's PDF parameter form as well as the related photographs, we also provide satisfying one-stop package service for customers.
