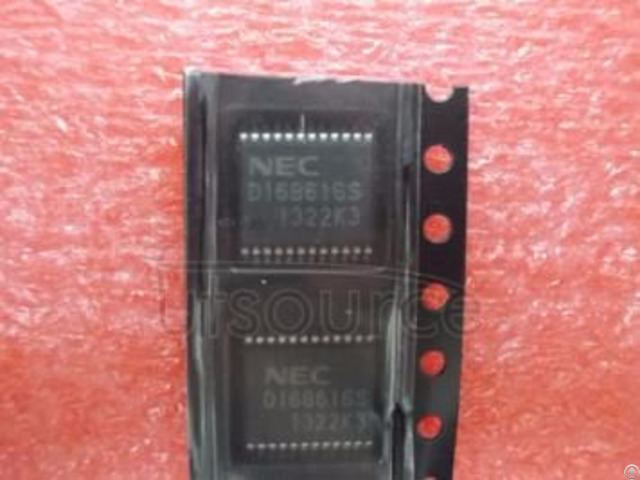

Utsource Electronic Components D16861gs - USA
price: 6.80 Dollar US$
1 - Description
The Fairchild Switch D16861GS provides 20-bits of highspeed CMOS TTL- compatible bus switching.
The low On Resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise.
A diode to VCC has been integrated into the circuit to allow for level shifting between 5V inputs and 3.3V outputs.
The device is organized as a 10-bit or 20-bit bus switch.
When OE1 is LOW, the switch is ON and Port 1A is connected to Port 1B.
When OE2 is LOW, Port 2A is connected to Port 2B.
When OEX is HIGH, a high impedance state exists between the A and B Ports.
2 - Features > 4Ωswitch connection between two ports.
> Minimal propagation delay through the switch.
> Low lCC.
> Zero bounce in flow-through mode.
> Control inputs compatible with TTL level.
> TruTranslation voltage translation from 5.0V inputs to 3.3V outputs
Company Contact:
- Posted By: UTSOURCE HOLDING Co., Ltd
- Phone: 6267574001
- Address: 2321 W Norwood Pl, Alhambra , CA , USA
- Email:
- Website: https://www.utsource.net
Published date: April 20, 2017
- Business Description: UTSOURCE is a professional purchasing B2B & B2C tools in electronic components field.
UTSOURCE provides different types such as IC, Modules, RF transistors etc., and various product type's PDF parameter form as well as the related photographs, we also provide satisfying one-stop package service for customers.
