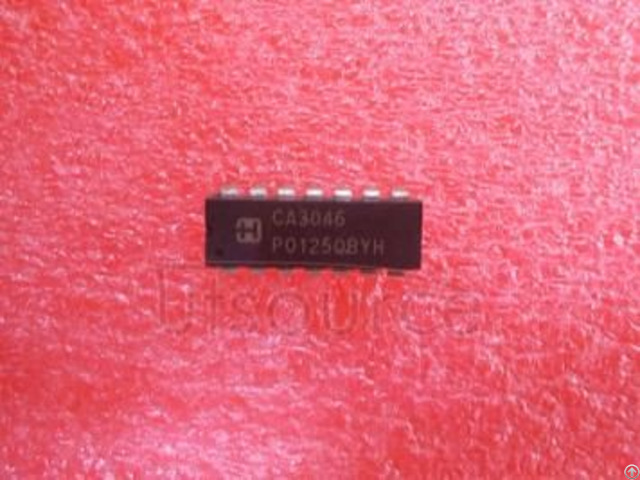

Utsource Electronic Components Ca3046 - USA
price: 0.33 Dollar US$
1 - Description
The CA3045 and CA3046 each consist of five general purpose silicon NPN transistors on a common monolithic substrate.
Two of the transistors are internally connected to form a differentially connected pair.
The transistors of the CA3045 and CA3046 are well suited to a wide variety of applications in low power systems in the DC through VHF range.
They may be used as discrete transistors in conventional circuits.
However, in addition, they provide the very signi cant inherent integrated circuit advantages of close electrical and thermal matching
Features
Two Matched Transistors
VBE Match ±5mV
IIO Match.
2 A (Max)
Low Noise Figure .
.
.
.
3.2dB (Typ) at 1kHz
5 General Purpose Monolithic Transistors
Operation From DC to 120MHz
Wide Operating Current Range
Full Military Temperature Range
