Triplex Triplexer Series Is 1310 1490 1550nm Single Fiber Optical Device Designed For Digital Bi Dir - China
price: contact company for price
Triplexer series is 1310/ 1490/ 1550nm single fiber optical device
designed for digital Bi- directional and analog receiver.
It is suitable
to use in the digital/ analog FTTx application.
Integrated with two kind
of coupler, the first is 1310nm/ 1490nm splitter and the second is 1490/
1550nm filter.
The transmitter section incorporates an advanced FP/ DFB laser diode can be operated up to 1.25Gb/ s, the 1490nm receiver section incorporates an efficient InGaAs/ InP PIN photodiode, the 1550nm receiver is a broadcast, low distortion photodiode.
The most compacted and cost- effective WDM can be provided in a single fiber.
The triplexer can be built for a wide variety of data communicate applications to implement high- speed extends up to 2.5Gb/ s signal rates, long distance up to 20km.
9/ 125μ m diameter single mode fiber with an optional
Company Contact:
- Posted By: Eoptolink Technology Inc. Ltd.
- Phone: 862867087999
- Address: No.127 West Wulian Street, Gongxing Town, Shuangli, Chengdu , China
- Email:
Published date: May 23, 2014
- Business Description: Eoptolink Technology Inc., Ltd is one of the professional maufactures of tranceiver modules in China.
Our products cover all the modules as GBIC, SFP, BIDI, COPPER SFP, XFP, CWDM, XFP, etc.
which are compatible with cisco, 3com, HP, Extrem swithes, etc.
We can customize our products to meet your need.
SFP, GBIC, XFP, COPPER SFP, CWDM, BIDI, XENPAK, CISCO, SFF, NETWORK, TRANSCIEVER, MODULE, FIBER, OPTICAL, 1x9
Related listings
-

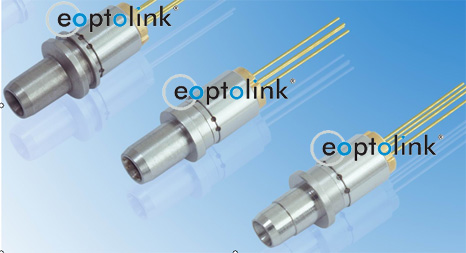

Tosa Transmitter Optical Sub AssemblyGeneral Electronics - Eoptolink Technology Inc. Ltd. - China - May 23, 2014 - contact company for priceEoptolink offers lasers for digital, analogue, CWDM and supervisory channel applications. Additionally we can supply Mini- TOSAs optimised for SFF and SFP designs and various FTTx devices. Digital transmission Economical un- cooled lasers for digital...
-
