Tps2829dbvr Mosfet Driver Low Side Utsource - USA
price: 1.20 Dollar US$

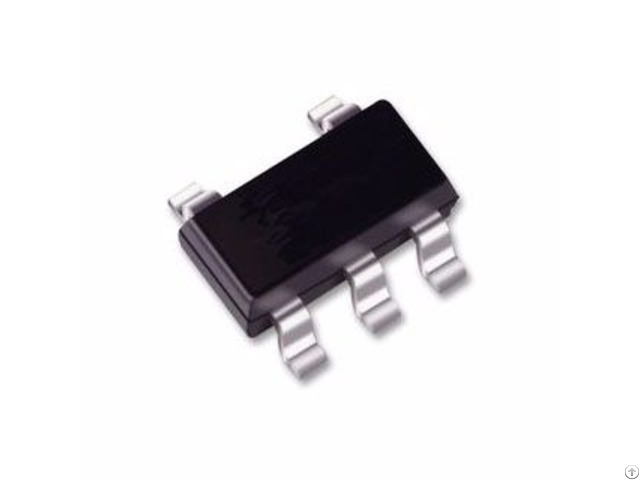

TPS2829DBVR MOSFET Driver Low Side, 4V-14V supply, 2A peak out, SOT-23-5-Utsource
Manufacturer: TEXAS INSTRUMENTS
1 - Description
The TPS2829DBVR is a single-channel non-inverting high-speed MOSFET Driver is capable of delivering peak currents of up to 2A into highly capacitive loads.
High switching speeds (tr and tf=14ns typical) are obtained with the use of BiCMOS outputs.
Typical threshold switching voltages are 2/3 and 1/3 of VCC.
The design inherently minimizes shoot-through current.
The TPS2829 is identical to the TPS2818 and TPS2819, except that the internal voltage regulator is omitted, allowing quiescent current to drop to less than 15μA when the inputs are high or low.
If you need them or other eletronic of components please contact us or view Utsource website.
2 - Features
• Highly resistant to latch-ups
• 25mA Continuous regulator output current
• ±100mA Continuous output current
• 1.3V Input voltage hysteresis
• 1000MΩ Input resistance
• 5pF Input capacitance
