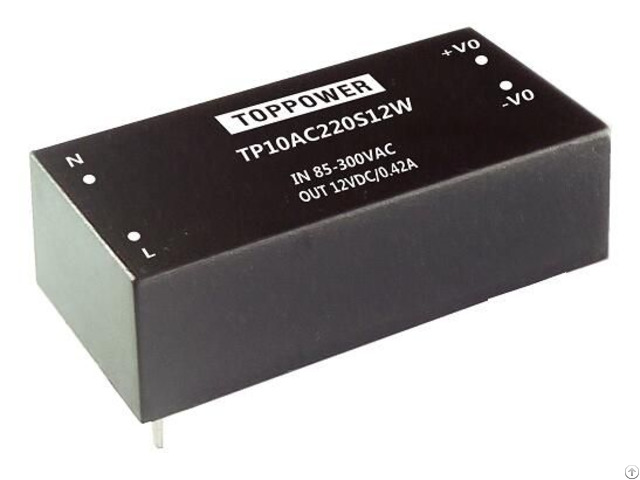

Tp10ac220s12w 10w Acdc Converter - China
price: 8.00 Dollar US$
The rated output power of TP10AC series is 10W with wide input voltage range, for both AC input and DC input application.
High reliability, precision, large power density, ultra-small size, no external heat sink required, stable output voltage and etc, with over current protection, EMI filter circuit, the rectifier filter circuit, 4000V isolation voltage, short circuit, overload, internal thermal protection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control and other electronic systems.
Part Number Input Voltage Output Rated
Range values Voltage(VDC) Current(A) (VAC) (VDC) TP10AC220S05W 85-300 110-370 5 2.0
TP10AC220S09W 85-300 110-370 9 1.11
TP10AC220S12W 85-300 110-370 12 0.83
TP10AC220S15W 85-300 110-370 15 0.66
TP10AC220S24W 85-300 110-370 24 0.41
Company Contact:
- Posted By: TOPPOWER
- Phone: 862062162688-809
- Address: Building No.3 ,Rui Fa Road No.15,, Guangzhou , Guangdong , China
- Email:
- Website: https://en.gztoppower.com
Published date: April 19, 2017
- Business Description: Toppower is a professional manufacturing enterprise of DC DC converters.
We focus on miniature DC DC converters researches, produces and markets,
Our products have been used in many fields; such as: Industrial Control
System, Power system, Apparatus and Instrument, Medical facilities, Rail
transit system, Telecommunication Equipment, Security and Protection
Equipment and Military Industrial System etc.
Toppower owns an outstanding researching team.
The products are 100% inspected and tested automatically by the advanced testing equipment.
The unique product design, manufacturing process and equipment make our products with high efficiency and very good reliabilities.
All DC DC converters are made with high quality spare parts and UL 94V 0 package material from the international prestigious suppliers.
As well, the products meet ROHS requirement and covers 40+ series with thousands of variants from 1 to 50W for your choice.
Our team targets to support you with professional products and service.
We also have stocks for the popular variants so as to meet your emergency needs on time.
we,TOPPOWER can produce:
0.1W-400W DC-DC converters,1W-30W AC-DC converters,(SIP/DIP/SMD)
15W-1200W Enclosed /Open frame/DIN RAIL type AC-DC Switching Power supply,
TOPPOWER quality : ISO9001: 2015, IATF16949: 2016
Guangzhou Top Power electronics Technology Co., Ltd
