Tp04ab220s05w 4w 3kvac Isolation Wide Input Acdc Converters - China

DESCRIPTION：

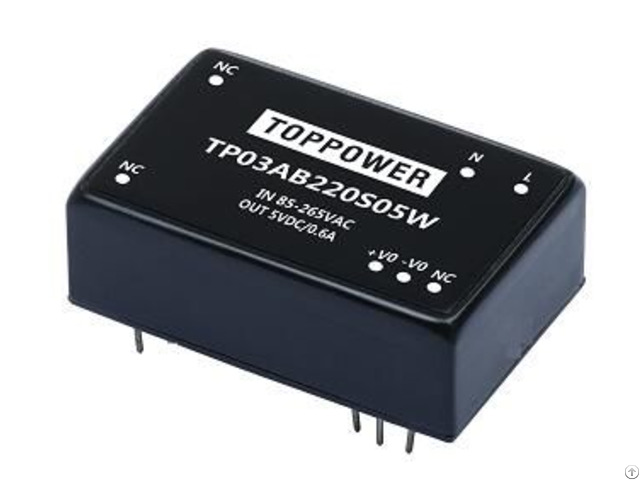

The rated output power of TP03(04)AB is 3W, 4W with wide input voltage range, for both AC input and DC input application.

High reliability, precision, large power density, ultra-small size, no external heat sink required, stable output voltage and etc, with over current protection, EMI filter circuit, the rectifier filter circuit, 3000V isolation voltage, short circuit, overload, internal thermal protection, Widely used in industrial control, telecommunications, instrument, data acquisition, signal control and other electronic systems.

Part Number Input Voltage Output Efficiency (Typ.

)

% Voltage Voltage (VDC) Current(A) Voltage (VAC) Voltage(VDC) TP03AB220S03W 85-265 120-370 3.3 0.60 64

TP03AB220S05W 85-265 120-370 5 0.60 68

TP03AB220S09W 85-265 120-370 9 0.33 70

TP03AB220S12W 85-265 120-370 12 0.25 72

TP03AB220S15W 90-264 120-370 15 0.20 76

TP04AB220S03W 90-264 120-370 3.3 0.80 64

TP04AB220S05W 90-264 120-370 5 0.80 68

TP04AB220S09W 90-264 120-370 9 0.44 70

TP04AB220S12W 90-264 120-370 12 0.33 74

TP04AB220S15W 90-264 120-370 15 0.266 76
