Tc426cpa Mosfet Driver Low Side Utsource - USA

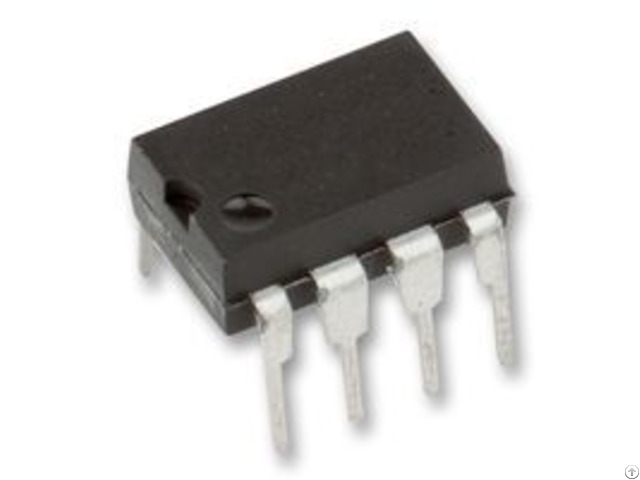

TC426CPA MOSFET Driver Low Side, 4.5V-18V supply, 1.5A peak out, 10 Ohm output, DIP-8-Utsource

Manufacturer: MICROCHIP

1 - Description

The TC426CPA is a dual inverting high-speed Power MOSFET Driver can translate TTL/CMOS input voltage level into a rail-to-rail output voltage level swing.

The CMOS output is within 25mV of ground or positive supply.

The low-impedance, high-current driver outputs swing a 1000pF load 18V in 30nsec.

The unique current and voltage drive qualities makes the TC426 ideal power MOSFET drivers, line drivers and DC-to-DC converter building blocks.

A, making direct interface input current is a low 1 to CMOS/bipolar switch-mode power supply control ICs possible, as well as open-collector analogue comparators.

Quiescent power supply current is 8mA maximum.

The TC426 requires 1/5 the current of the pin-compatible bipolar DS0026 device.

This is important in DC-to-DC converter applications with power efficiency constraints and high-frequency switch-mode power supply applications.

Quiescent current is typically 6mA when driving a 1000pF load 18V at 100kHz.

If you need them or other eletronic of components please contact us or view Utsource website

2 - Features

• High output voltage swing

• TTL/CMOS input compatible

• Single supply operation

• 6Ω Low output impedance

• Latch-up resistant - Withstands >500mA

• 2kV ESD protected
