Smallest Outdoor Fixed P3 Full Color Led Display For Shopping Mall Wall Building - China

Smallest Outdoor Fixed P3 Full Color LED Display for Shopping Mall Wall Building

P3 Full Color LED Display

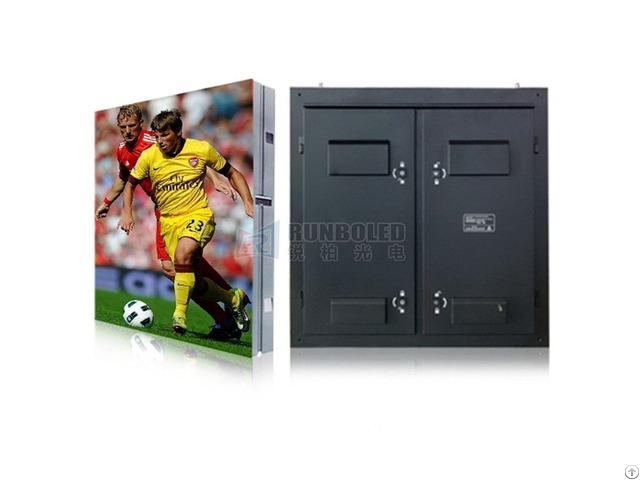

Smallest outdoor fixed led display P3 outdoor fixed with 192x192mm led module, 960x960mm led cabinet.

For this series, brightness can up to 4000nits-5000nits with high brightness led lamp.

Iron cabinet or aluminum cabinet suit for different temperature area.

In the future P2.5 outdoor will be achieved soon, which is used for the floor or lower building that request high resolution.

Features of Outdoor LED Screen P3:

1 - High resolution led display P3 outdoor, best viewing distance with 3M.

2 - Great waterproof IP65 for outdoor fixed application.

3 - Iron cabinet and aluminum cabinet available according to the led screen installed environment, cabinet size can be customized.

4 - Wide viewing angle, will be easily to attract the audience’s attention.

5 - Seamless stitching for the led modules and led screens, more smoothly after finished assemble as a big whole led display.

6 - Best color uniformity and high brightness to keep outstanding performance;

7 - Long life-span up to 2-5 years.

Specification of Smallest Fixed LED Display: Parameter Technical of P3 Outdoor LED Display Manufacturer

Item Model Parameter

LED Module Info.

Pixel Pitch P3 Outdoor Fixed LED Display LED Lamp SMD1921 IC Driver MBI5124/MBI5051B/MBI5253 LED Module Size 192*192mm LED Module Resolution 64*64dots Color Temperature 3000-9000K Drive Mode 1/16 scan

LED Cabinet Info.

Cabinet Size 960*960*120mm, customized Cabinet Resolution 320*320dots Cabinet Material Iron or Aluminum Cabinet LED Module Quantities 5*5=25pcs Cabinet Net Weight 45kg/pc IP Grade Waterproof IP65

LED Display Info.

Best Viewing Distance 3m-50m Viewing Angle H: 140°/ V: 120° Pixel Density 111111dots/㎡ Brightness 4000nits Max.

Power Consumption 1328W/㎡ Ave.

Power Consumption 598W/㎡ Refresh Rate 1920Hz-3840H, can be adjusted

Control System Info.

Operating System WIN98/2000/NT/XP Control Method Synchronous display with control PC by DVI or Asynchronous with Wifi/4G/USB Control System Linsn, Nova-star, Colorlight or as you required Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.

etc.

Frame Frequency 50Hz or 60Hz Transmission Distance Multi mode fiber <500m, single mode fiber <30km, internet cable<100m

Operation Info.

Working Temperature -20℃--+60℃ Storage Temperature -30℃--+80℃ Input Voltage AC110V/AC220V/50Hz/60Hz Humidity Environment 10%-95% Lifespan 100, 000hours MTBF 10, 000hours Certificate CE, CCC, FCC, ROHS, ISO9001
