Sma Power Divider Combiner 2 18ghz 4 Way - China
price: contact company for price
● Model Number: XQY-PS4-2/18-SE
● Wideband Frequency : 2-18GHz
● Low Insertion Loss : ≤2.0 dB
● low VSWR:
Input Port VSWR: Typ.
1.35 / Max.
1.5
Output Port VSWR: Typ.
1.25 / Max.
1.4
● Excellent Amplitude Balance: ±0.4 dB
● High Port-to-Port Isolation: Typ.
22dB / Min.
17dB
● Input/Output connector type: SMA-Female
● Customed frequency bands, connector type and optimized specifications are available.

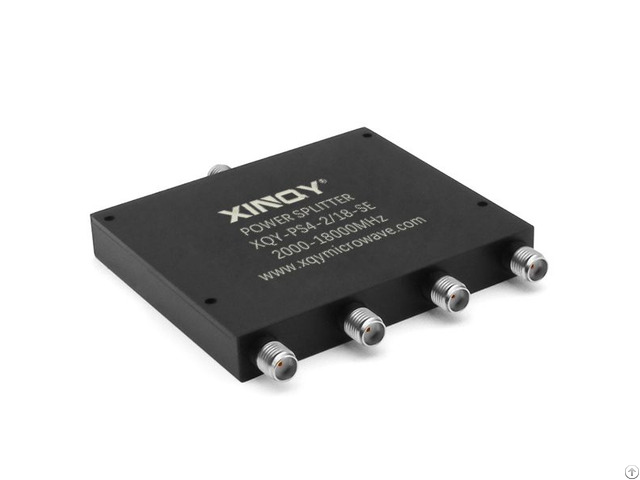

4 Way SMA Power Combiner 2-18GHz is an RF broadband, 4 way, power divider/combiner furnished with SMA female coaxial connectors.
The broadband band frequency from 2 - 18 GHz are covered with optimal performance.
Max microwave input power levels up to 20 watts, which can be handled in power splitter and up to 1 watts as power combiner applications.
Customed frequency bands, connector type and optimized specifications are available! For any enquiries about our products or any customization, please Contact us, and we will quickly get back to you.
Please see Parameters tables for details.
Advanced technology
All XINQY power divider, power splitter, combiner adopt advanced technology: precision CNC machining, SMT, eutectic sintering and hybrid microassembly.
We have a variety of surface treatments for Power Splitters/ Combiners such as Sandblasting natural Color Conductive oxide, Painting (black paint or blue paint) which in order to suit different applications.
Using 4-axis and 5-axis CNC machine tools, precision machining can be carried out according to the requirements of different structures, so that the products can obtain the double guarantee of mechanical and electrical properties.
According to the characteristics of different products, develop specific SMT process to ensure efficient and high-quality installation effect; X-ray and AOI detection equipment are used for detection, without leaving any hidden dangers of mounting.
Adopting eutectic sintering process, the frequency characteristics, heat dissipation characteristics and reliability of the product are effectively guaranteed.
Company Contact:
- Posted By: Shenzhen Xinqiyuan Technology Co., LTD
- Phone: 0755-23345158
- Address: Room 525, Block C, New Generation Information Technology Industrial Park, Xin 'an Street, Shenzhen , Guangdong , China
- Email:
- Website: https://www.xqymicrowave.com/
Published date: November 15, 2022
- Business Description: Shenzhen Xinqiyuan Technology Co., Ltd. is a technical innovation enterprise specializing in the r&d, manufacturing, sales and service of rf microwave test devices such as high-performance RF power distributor, RF coaxial cable components, precision RF connectors, precision RF loads, precision coaxial attenuators and microwave components.
The company has a top RESEARCH and development team in the same field in r&d, manufacturing, technology and so on, with strong innovation ability and research and development ability.
The company is equipped with advanced production equipment and testing instruments at home and abroad, and adopts strict quality control methods to ensure the performance of products.
The products are applied in rf testing, mobile communications, aerospace, military electronics, radar navigation, vehicle-mounted electronics, medical instruments, microwave laboratories, electromagnetic simulation and instrumentation and other high-tech fields.
We rely on years of industry technology precipitation, the introduction of high-end technical personnel and extensive resource advantages for the majority of new and old customers to provide high-quality products and flexible and thoughtful service, but also constantly committed to customer optimization efficiency and cost reduction.
We uphold the "integrity, diligence, innovation, enterprising, positive" concept, willing to cooperate with the majority of partners to win mutual benefit, hand in hand!
