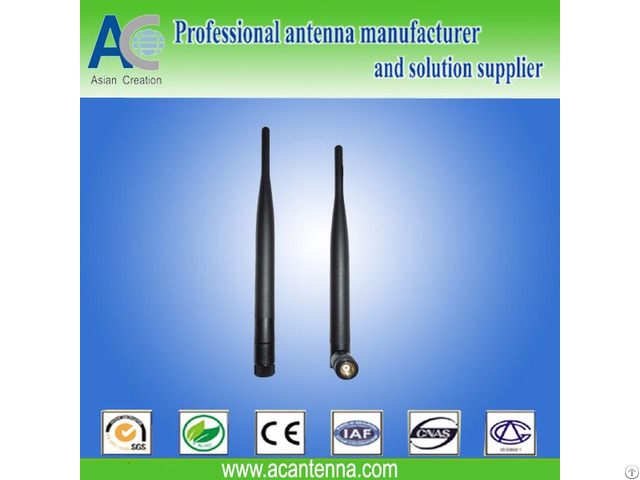

Sma Lte Terminal Antenna Plastic With Swivel - China
price: 1.68 Dollar US$
Electrical
Frequency Range 698-960/1710-2170/2500-27 00MHz
Band width 262/460/200
Gain 3dBi
V.S.W.
R ≤2.0: 1
Radiation Omni-direction
Polarization Vertical
Lightning Protection DG-Grounded
Maximum Input Power 50W
Impedance 50Ώ
Connector SMA Male/RP SMA Male
Antenna Radome Material TPEE
Mechanical
Dimensions Φ13×197mm
Weight 35g
Operating Temperature -40℃ to+70℃
RoHS Compliant YES
1 - Introduction
The 4G Whip Antenna is vertically polarized with an omnidirectional radiation pattern.
These antennas are intended for demonstration use or short range communications only.
It does not require a ground-plane to connect to.
It has a quality TPE housing for use with 4G/LTE terminals.
Linear polarized antenna can be made very small and light weight, especially useful for weight-critical application
It can be used straight or hinged 90 degrees.
The antenna has a wide-band response and can also be used for other cellular and
wireless applications such as GSM, LTE, UMTS, and WI-FI.
