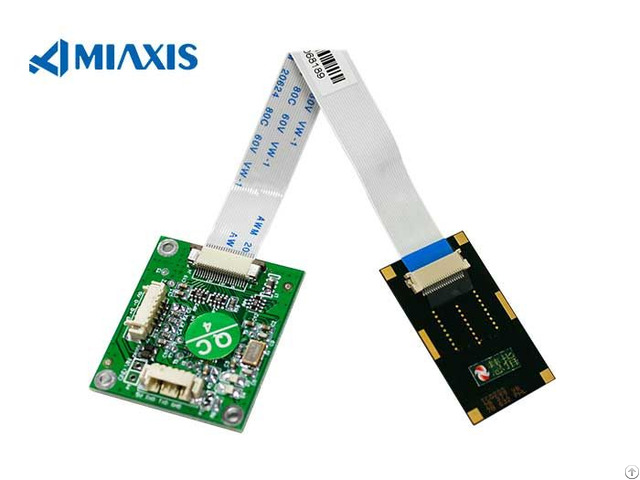

SM-205D series fingerprint modules

OVERVIEW:

Miaxis® SM-205D series fingerprint modules are high-performance standalone fingerprint modules equipped with reliable high-end capacitive sensor and powerful CPU while power efficient.

1: 1 verification time in 300 msec and fast power-on time.

Miaxis fingerprint modules FEATURES:

●508 dpi resolution

●High performance fingerprint module -Adopted Upek sensor TCS2 : Industry's highest quality image for dry&wet fingers

●1: 1 verification in 300 msec

●Live finger detection technology

●IP 67 rated dust and water protection(platen window)

●UART&USB multiple interfaces

●LED control

fingerprint modules SPECIFICATION:

Specification SM-205DJR

CPU 84MHz, Cortex-M4

Flash memory 1MB

(Expandable up to 16MB)

Board Size(L x W x H) 35.0× 30.0× 7.5mm

Sensor Size 33.4 x 20.4 x 2.4mm

Sensor type Capacitive

Sensor name TCS2

Active platen area 10.4 x 14.4mm

Image Size 208 x 288 pixel

Image resolution 508dpi

Grey scale 8 bit (256 levels)

Power-on time ≤200ms

Enrollment time

(Finger touch to template) ≤500ms

1: 1 Verification time ≤300ms

1: N Matching time ≤1s, N=256

FAR ≤0.001%

FRR ≤1%

Template size 256 bytes default

Fingerprint capacity 1000 templates(Expandable)

Live finger detection Yes

ESD immunity ±8kV contact discharge

±15kV air discharge

Supply voltage DC 5V±5%

Supply current ≤80mA

Supply current Sleep mode /

Communication interface USB&UART

Operating Temperature -10°C to +50°C

Storage Temperature -20°C to +60°C

Operating humidity 20%RH～90%RH

If you want to know more information about Miaxis fingerprint modules, please visit our website
