Simcom Sim868 Gsm Gprs Gnss Module - Taiwan

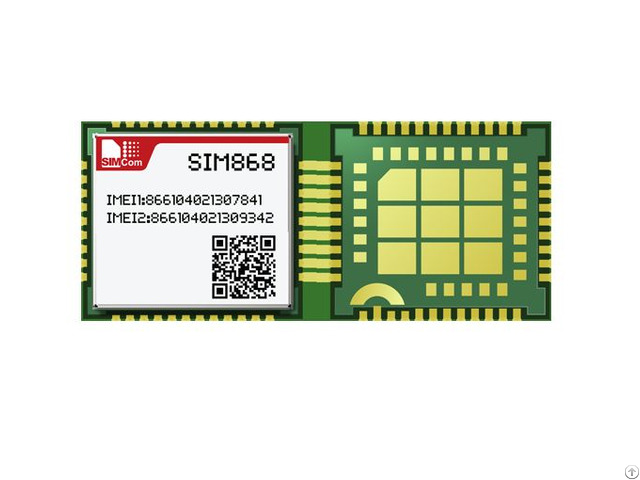

GSM/GPRS+GNSS Module SIM868 module is a complete Quad-Band GSM/GPRS module which combines GNSS technology for satellite navigation.

The compact design with LCC and LGA pads will significantly save both time and costs for customers to develop GNSS enabled applications.

Featuring an industry-standard interface and GNSS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.

General Features

* Band : Quad-band 850/900/1800/1900MHz

* Supply voltage range : 3.4V~ 4.4V

* Normal Operation Temperature : -40°C to +85°C

* Dimension : 17.6 x 15.7 x 2.3 mm

* Weight : 1.5g

* GPRS multi-slot class 12/10

* GPRS mobile station class B

* Compliant to GSM phase 2/2+

– Class 4 (2 W @ 850/900MHz)

– Class 1 (1 W @ 1800/1900MHz)

* Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)

* Low power consumption Specifications for SMS via GSM/GPRS

• SMS cell broadcast

• Text and PDU mode Specification for GPS

• Receiver type

- 22 tracking /66 acquisition

- channel-GPS L1 C/A code

• Sensitivity

- Tracking: -166 dBm

- Cold starts : -148 dBm

• Time-To-First-Fix

- Cold starts: 29s (typ.

)

- Hot starts: <1s

- Warm starts: 22s

• Accuracy-Horizontal position : <2.5m CEP Software features

• 0710 MUX protocol

• Embedded TCP/UDP protocol

• FTP/HTTP

• MMS

• POP3/SMTP

• DTMF

• Jamming Detection

• Audio Record

• SSL Specifications for GPRS Data

• GPRS class 12: max.

85.6kbps(downlink/uplink)

• PBCCH support

• Coding schemes CS 1, 2, 3, 4

• PPP-stack

• USSD Interfaces

• 77 SMT pads including

• SIM Card Interfaces

- SIM card: 3V/ 1.8V

• Analog audio interface

• RTC backup

• I2C interface

• USB interface

• Serial interface

• SD

• GPIO

• ADC

• GSM Antenna pad

• Bluetooth Antenna pad

• GNSS Antenna pad
