Simcom Quad Band Gsm Gprs Module Sim800c Ds - Taiwan

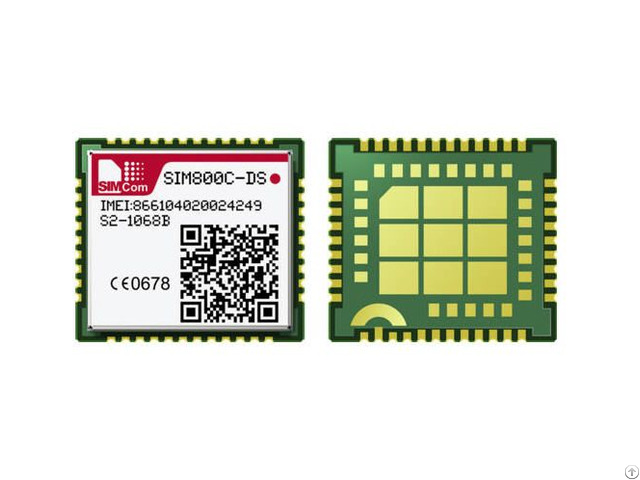

SIM800C-DS is a complete Quad-band GSM/GPRS solution with LCC and LGA pads, support Dual-SIM, which allows customers to use two SIM cards in one device simultaneously.

SIM800C-DS supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption.

With tiny size of 17.6*15.7*2.3mm, it can smoothly fit into slim and compact demands of customer design.

General Features

• Band : Quad-band 850/900/1800/1900MHz

• Supply voltage range : 3.4V~ 4.4V

• Normal Operation Temperature : -40°C to +85°C

• Dimension : 17.6 x 15.7 x 2.3 mm

• Weight : 1.3g

• GPRS multi-slot class 12/10

• GPRS mobile station class B

• Compliant to GSM phase 2/2+

– Class 4 (2 W @ 850/900MHz)

– Class 1 (1 W @ 1800/1900MHz)

• Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)

• Low power consumption Specifications for SMS via GSM/GPRS

• Point to point MO and MT

• SMS cell broadcast

• Text and PDU mode Software features

• 0710 MUX protocol

• Embedded TCP/UDP protocol

• FTP/HTTP

• MMS

• POP3/SMTP

• DTMF

• Jamming Detection

• Audio Record

• TTS_CN (optional) Specifications for GPRS Data

• GPRS class 12: max.

85.6kbps(downlink/uplink)

• PBCCH support

• Coding schemes CS 1, 2, 3, 4

• PPP-stack

• USSD Interfaces

• 77 SMT pins including

• SIM Card Interfaces (Dual Standby)

- SIM card 1: 3V/ 1.8V

- SIM card 2: 3V/ 1.8V

• Analog audio interface

• RTC backup

• I2C interface

• USB interface

• Serial interface

• PCM

• SD

• GPIO

• ADC

• GSM Antenna pad Compatibility

• AT cellular command interface Approvals

• CE

• ROHS

• REACH
