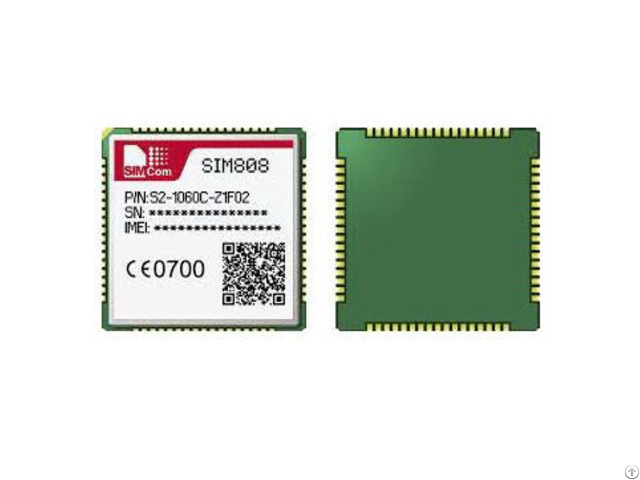

Simcom Gsm Gprs Gps Module Sim808 - Taiwan

SIM808 module is a complete Quad-Band GSM/GPRS module which combines GPS technology for satellite navigation.

SIM808 module is a complete Quad-Band GSM/GPRS module which combines GPS technology for satellite navigation.

The compact design which integrated GPRS and GPS in a SMT package will significantly save both time and costs for customers to develop GPS enabled applications.

Featuring an industry-standard interface and GPS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.

General features

* Quad-band 850/900/1800/1900MHz

* GPRS multi-slot class 12/10

* GPRS mobile station class B

* Compliant to GSM phase 2/2+

– Class 4 (2 W @ 850/900MHz)

– Class 1 (1 W @ 1800/1900MHz)

* Bluetooth: compliant with 3.0+EDR

* Dimensions: 24*24*3mm

* Weight: TBD

* Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)

* Supply voltage range 3.4 ~ 4.4V

* Low power consumption

* Operation temperature: -40℃ ~85℃ Specifications for GPRS Data

* GPRS class 12: max.

85.6 kbps (downlink/uplink)

* PBCCH support

* Coding schemes CS 1, 2, 3, 4

* PPP-stack

* CSD up to 14.4 kbps

* USSD

* Non transparent mode Specifications for SMS via GSM/GPRS

* Point to point MO and MT

* SMS cell broadcast

* Text and PDU mode Software features

* 0710 MUX protocol

* Embedded TCP/UDP protocol

* FTP/HTTP

* MMS

* E-MAIL

* DTMF

* Jamming Detection

* Audio Record

* TTS (optional)

* Embedded AT (optional) Compatibility

* AT cellular command interface Interfaces

* 68 SMT pads including

* Analog audio interface

* PCM interface(optional)

* SPI interface (optional)

* RTC backup

* Serial interface

* USB interface

* Interface to external SIM 3V/1.8V

* Keypad interface

* GPIO

* ADC

* GSM Antenna pad

* Bluetooth Antenna pad

* GPS Antenna pad Certifications(Plan):

* CE

* GC, F

* FCC

* ROHS

* REACH
