Qh 31 Alloy Steel With S Type Truck Load Cell - China

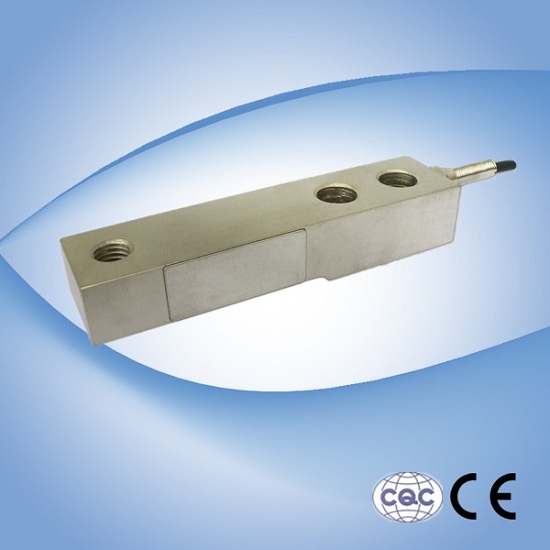

QH- 31 load cells are available in the capacities from 20kg to 5000kg.

Alloy steel material with S beam style.

Silicon adhesive sealed inside.

It is waterproof and anti- corrosion.

So be

suitable for all kinds of

environment.

Tension and/ or compression load.

Be suitable for electronic crane scale, hopper scale, mechanical conversion

scale and other electronic

weighing devices.

Features:

Capacity ： 20 kg to 5000 kg

Defend grade: IP66 & IP68

High accuracy.

Reliable performance.

Alloy steel or stainless steel.

Integral installation.

Low profile.

Technical Specifications

Specifications:

capacity Kg 20, 5000.

safe overload % FS 150

ultimate overload % FS 200

rated output mV/ V 2.0 ± 0.004

excitation voltage Vdc 9 ~ 12

combined error % FS ± 0.03 ± 0.02

zero unbalance % FS ± 1.0

non- linearity % FS ± 0.03 ± 0.02

hysteresis % FS ± 0.03 ± 0.02

repeatability % FS ± 0.02 ± 0.02

creep % FS/ 30min ± 0.03 ± 0.02

input resistance Ω 390± 20 580± 20

output resistance Ω 351± 4 501± 4

insulation resistance M Ω ≥ 5000 @ 100 Vdc

operating temperature range ℃ - 20 ~ +55

compensated temperature range ℃ - 10 ~ +40

temperature coefficient of SPAN % FS/ 10℃ ± 0.02 ±0.02

temperature coefficient of ZERO % FS/ 10℃ ± 0.03 ±0.02

Electrical connection:

Excitation+ green Excitation- yellow Signal+ white Signal- red

Four- core shielded cable with polyethylene.

Cable is not connected with

elastomer.

Cable length： 3 m

Cable diameter ： 5 mm

The cable length could be chose by customer’s application.
