Precision Metal Film Fixed Resistors - China
price: contact company for price

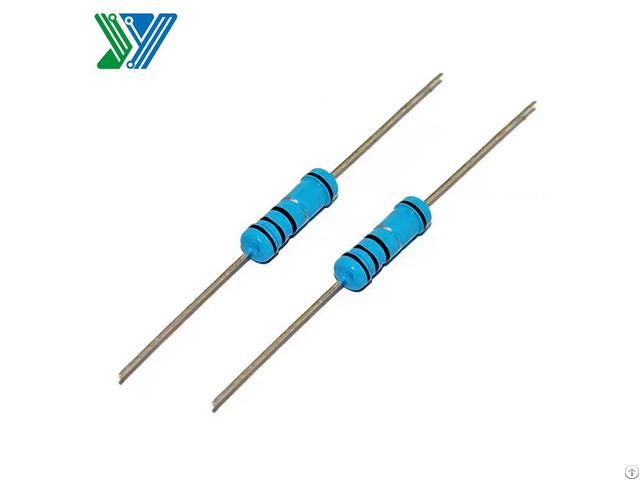

Precision Metal Film Fixed Resistors
Product Description
The metal film resistor is made of a thin film of metal that is deposited onto a ceramic substrate.
The metal film is usually made of nickel-chrome or tin-oxide, and its thickness determines the resistance value of the resistor.
The substrate provides the physical support for the metal film, and it also provides insulation between the metal film and other components in the circuit.
type Dimensions(mm) L±0.5 D±0.5 d±0.02 H±1.0
1/8W 3.5 1.7 0.42 26.0
1/4W 6.0 2.3 0.45 26.0
1/2W 9.0 3.0 0.55 26.0
1W 11.5 4.5 0.65 26.0
2W 15.5 5.0 0.70 26.0
3W 17.0 6.0 0.70 26.0
Company Contact:
- Phone: +86 188 20015868
- Address: Building 27, Guangde Industrial Park, 43 Yingbin Avenue West, Huadu District,, Guangzhou , Guangdong , China
- Email:
Published date: October 11, 2023
- Business Description: Guangzhou Xieyuan Electronic Technology Co., Ltd. is a professional manufacturer of resistors, the main products are: wire wound resistor, power type fixed resistor, metal aluminum shell resistor, precision sampling resistor, high precision metal film resistor, low resistance non-inductive resistor and so on.
Products are widely used in power supply, industrial control, household appliances, instruments, welding equipment and other industries.
