Odm 48v100ah 15s1p Lithium Lifepo4 Battery - China

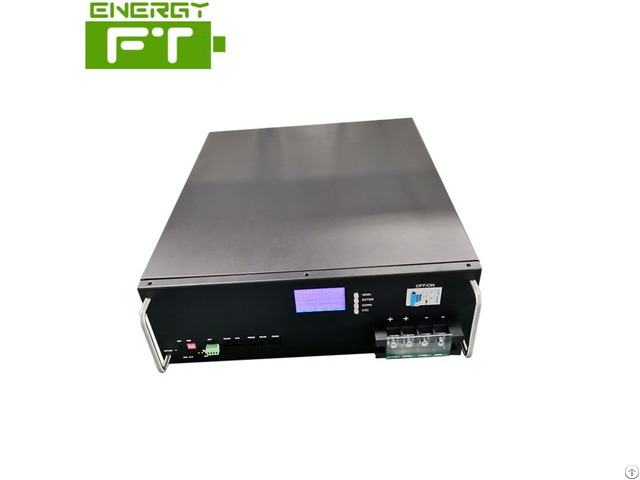

ODM 48V100Ah 15S1P Lithium LiFePO4 Battery LiFePO4(lithium iron phosphate)is a lithium-ion Battery technology that is safe, powerful and plug compatible with most lead acid Battery charging systems.

They are safest battery type available today.

Future Energy LFP battery has a built-in Battery Management System(BMS), we can guarantee the safety and reliability of our batteries.

Our Vision: Provide world-class LFP Battery pack solution for world-widely customers 1 - Major technique parameters of LiFePO4 Battery pack:

1)Model: FT-48100-3U

2)Normal Capacity: 100Ah

3)Normal Voltage: 48V

4)Energy: 4, 8KWh

5)Charging Voltage: ≤54, 75V

6)Shell materials: Q235

7)Max.

Continuous Charge &Discharge Current: 1C(100A) 8)Operation Temperature Range(Charge): 0-45ºC

9)Operation Temperature Range(Discharge): -20~65ºC

10)Dimensions: Approx.

L442*W480*H134mm

(17, 4*18, 9*5, 28in)Excluded terminals, handles & mounting ears) 11)N.

W: Approx.

43KG 2 - LiFePO4 Battery widely used in: Solar energy storage, Home energy storage, Wind energy, Hydro energy, Back up power, Communication base station, Data center, Server room, Forklift, Golf Cart, AGV, RV, Electric boats, yarts, robots etc Hottest applications fields.

3 - LiFePO4 Battery major features:

1)Standard size: it can be installed in standard 19”cabinet.

Height: 3U only, Save space.

2)High energy density & Environmental Protection economy.

3)Meets all UN transportation testing

4)Intelligent BMS: it can be communicated with FSU, real-time monitoring and remote control battery string status, anti-theft locking machine, alarm model output etc.

5)Voltage, Capacity, Shell, Cables, Connector, Functions, brand etc can be customized.

6)Avoid Over Charge, Over Discharge, Short-Circuit Over Current, Over Voltage, Overload etc and have Balance Voltage, Anti-Protection, Temperature detection, Communicate Function, Alarm, Wireless monitoring functions etc.

7)Widly operating temperature range: -20~65℃

8)Reliable and Superior safety: High safety lithium iron phosphate cell, with high-precision BMS;

9)Longer Cycle-life: over 3000times at 1C discharge, much Lower usage cost 4 - Major tests ensure high quality:

1)Initial Performance Test

A.

Open-Circuit Voltage

B.

Internal Impedance

C: Min.

Rated Capacity

2)Cycle Life

3)Leakage-Proof Test

4)Vibration Test

5)Drop Test

6)Crush Test

7)Short Circuit Test: BothºC20 and 60ºC

8)Impact Test

9)Forced Discharge Test

10)Nail Pricking Test

.

5 - Warning: Do not dispose of in fire or heat.

Do not run it to out of power, or it would not be charged again.

Do not puncture, damage and disassemble.

Do not mix fresh batteries with used batteries.

Please avoid short-circuit operation in case of generating high temperature.

Please avoid charging and using at thesame time.

it is harmful to the battery.
