  • Microscope Gige Cameras 14mp Color Cmos Camera - China

    price: contact company for price

    G1GD14C

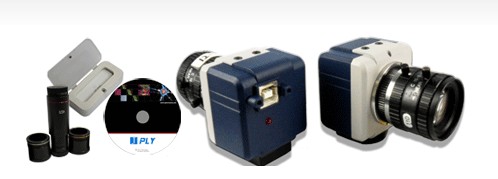

    Microscope &GigE Cameras 14MP color cmos Camera

    specifications of product:

    Model G1UD01M

    Digital interface Gigabit Ethernet

    Sensor Type Progressive scan CMOS

    Resolution 4384 x 3288

    Sensor model MT9F001

    Sensor size 1/2.3'

    Pixel size 1.4μm x 1.4μm

    Max.

    frame rate 13fps@1280x960

    ADC 12 bit

    Dynamic range 63.5 dB

    Exposure time 1.6ms~17.9min

    Read-out noise 7e-

    ROI 4 regions/frame

    DSP frequency 400MHz

    On board memory 256MB

    I/O trigger programmable, 6 channels

    Lens Mount C/CS mount

    Color/Mono Color

    IR cut filter integrated in C-mount 18mm x 18mm

    Voltage supply USB 2.0 powered

    Power consumption 2.8W, 1.3W standby

    Ambient condition -30°C~70°C

    Storage condition -30°C~70°C

    Software SpectrumSee

    SDK available

    Operation System Windows 2000/XP/Vista/7 (32&64 bit)

    Weight Approx.

    265g (customizable housing case)

    feartures of product:

    ROI: 4 regions per frame

    400MHz DSP frequency

    Output without interpolation

    256MB on-board memory

    High-definition, high-quality color reproduction

    6 channels I/O, programmable trigger

    SDK available, support Windows 7, 32/64bit OS

    Customizable

    application:

    Machine vision and inspection

    Industrial Inspection and measurment

    sample is available if customer pay sample cost and freight , will pay back one-way shipping fee if customer agrees to buy.


    Company Contact:


    • Phone: 862038077661

    • Address: A2-305, Yufu Science & Trading Park Tangdon, Guangzhou , China

    • Email: Email

    Published date: August 30, 2013

    • Business Description: JPLY technology is a Chinese microscope camera manufacturer with Six years of OEM/ODM experience and a strong technical support team.

      We can provide high quality OEM USB3.0, USB2.0, GigE camera with 1.3MP, 3.0MP, 5.0MP, 10.0MP, 14.0MP CMOS/CCD camera and Imaging Solution.
