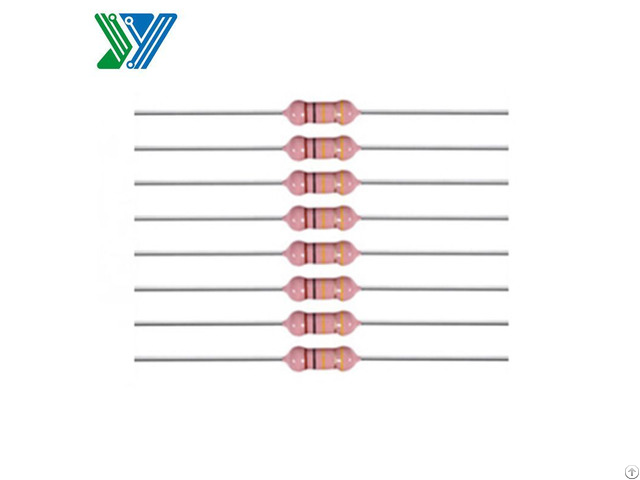

Metal Glaze Resistor - China
price: contact company for price
Metal glaze resistor
Product Description
High resistance value.
small size.
endure high temperature.
high voltage good performance cnduring moisture and good overload capability.
Glass Glaze Resistor Features
1 - High resistance value.
small size.
endure high temperature.
high voltage good performance cnduring moisture and good overload capability
2 - Operating ambient temperature: -55℃~+125â„ ƒã€‚
3 - Surface is nonflammable.
The normal size coats brick red and small size coating is gray white.
That add a yellow ring at the behind of the precision color rings to distinguish the resistors types.
4 - Resistance tolerance: ±1%, ±2%, ±5%, ±10%
Dimensions and Voltage Performance
Power Resistance range Dimensions(mm) Max.
working voltage Max.
overload voltage Max.
Pulse voltage Max.
insulation voltage L±1 D±0.5 d±0.05 H±1 1/4W 1K~75M 6.0 2.3 0.45 26.0 350V 700V 700V 500V
1/2WS 1K~75M 6.0 2.3 0.45 26.0 350V 700V 700V 500V
1/2W 1K~75M 9.0 3.2 0.55 26.0 500V 1000V 1000V 750V
1WS 1K~75M 9.0 3.2 0.55 26.0 500V 1000V 1000V 750V
1W 1K~75M 11.0 4.5 0.65 26.0 700V 1400V 1400V 1000V
2WS 1K~75M 11.0 4.5 0.65 26.0 700V 1400V 1400V 1000V
Company Contact:
- Phone: +86 188 20015868
- Address: Building 27, Guangde Industrial Park, 43 Yingbin Avenue West, Huadu District,, Guangzhou , Guangdong , China
- Email:
Published date: October 11, 2023
- Business Description: Guangzhou Xieyuan Electronic Technology Co., Ltd. is a professional manufacturer of resistors, the main products are: wire wound resistor, power type fixed resistor, metal aluminum shell resistor, precision sampling resistor, high precision metal film resistor, low resistance non-inductive resistor and so on.
Products are widely used in power supply, industrial control, household appliances, instruments, welding equipment and other industries.
