  • Medium Wall Halogen Free Busbar Insulation Heat Shrinkable Tubing Bh Bt - China

    price: contact company for price

    Description:

    BH- BT is a kind of heat shrink tubing with the characteristic medium wall and halogen free.

    It is made from specially formulated radiation cross- linked halogen free compounds.

    It can provide high resistance to tracking and arcing.

    Features:

    1 - Medium Voltage: 11kv, 24kv, 36KV

    2 - Tracking- resistant, low smoke, high strength, flexible, flame retardant

    3 - Operating Temperature range: 110 degree Celsius

    4 - Approvals: RoHS

    5 - Colors: Red

    Application:

    Medium wall halogen free busbar insulation heat shrinkable tubing is widely used to

    enhance the insulation properties of bus- bar in switch and substation.

    Suitable for application

    Voltage between 11KV, 24KV, 36KV.

    Technical Data:

    Property Test Method Typical Data

    Tensile strength ASTM D 2671 ≥ 11.8MPa

    Tensile strength after aging ASTM D 2671/ 120℃ , 168hrs.

    ≥ 10MPa

    Longitudinal shrinkage ASTM D 2671 0 to - 10%

    Elongation at break ASTM D 2671 ≥ 700%

    Elongation at break after aging ASTM D 2671/ 120℃ , 168hrs.

    ≥ 500%

    Dielectric strength IEC 243 ≥ 20KV/ mm

    Dielectric constant IEC 250 3.0( max.

    )

    Volume resistance IEC 93 ≥ 1013Ω .

    cm

    Flammability( Oxygen Index ) IEC 4589 ≥ 25

    Copper corrosion ASTM D 2671 120℃ , 168hrs , no corrosion

    Cold bend ASTM D 2671 - 40℃ , 4hrs , no cracking

    Water absorption ISO 62/ 23℃ , 14 days <0.5%


    Company Contact:


    • Phone: 29179250

    • Address: zhouteng Industrial Park,Shanglilang,Buji,Lon ggang, Shenzhen , China

    • Email: Email


    Published date: October 14, 2014

    • Business Description: We warmly welcome distributors/wholesalers throughout the globe.

      Provided you have any further inquiries or question, please feel free to

      contact us, we will be happy to work with you in the coming future.

    Related listings

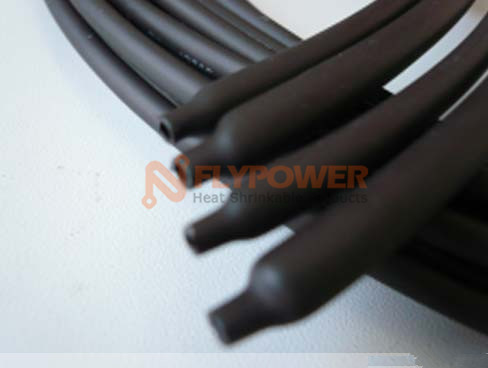

    • Sell 6 1 Flame Retardant Heavy Wall Heat Shrinkable Tube Tubing Sleeve
