Led Driver - China

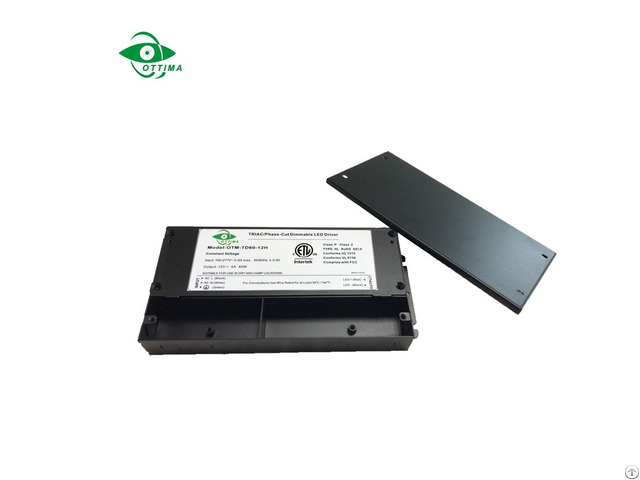

60W junction box triac dimmable LED driver 12v/24v Junction box LED driver price LED driver

60w 12v 24v triac dimmable LED driver power supply with mental junction box class 2 ETL listed

Feature:

Junction box triac dimmable LED driver

Input Voltage: 100-277Vac or 180-240Vac

PF: 0.98

Dimming range: 0-100%

Protection: short circuit/over loading/over temperature

PMW output, not change the color index

Full protection case, for dry, damp location

Flicker free

Triac/forward and reverse phase (leading and trailing edge)/MLV/ELV dimmer

Cooling by free air convection

7 years warranty

Certificate: CE, RoHs, C-tick, SAA, SELV, ETL, TUV, FCC

60w 12v 24v triac dimmable LED driver power supply with mental junction box class 2 ETL listed Junction box LED driver Specification:

Part Number OTM-TDJ60-PH12 OTM-TDJ60-PH24

Power 60W

Input voltage 100-277Vac or 180-240Vac

Output voltage 12Vdc 24Vdc

Output current 5A 2.5A

Dimmable Triac dimmable

IP grade IP54

PF >0.95

Dimension 188*90*26mm

Weight 1.1kgs

Pcs/carton 20pcs/carton

Certificate CE, RoHs, C-tick, SAA, SELV, ETL, TUV, FCC

Warranty 7 years warranty

Label We can print your logo free on the led driver

Our LED Drivers include constant current LED Driver, constant voltage LED Driver, waterproof LED Driver, triac dimmable LED Driver, ultra-thin LED Driver, 0-10V/1-10V/PWM dimmable LED Driver, DALI LED Driver, etc.
